Upgrade to an RGB SCART! This cable supplies an RGB video signal and stereo sound from your Sega Mega Drive 2 or Genesis 2 which is far superior than the original video cable, plus with an RGB SCART there is no need for TV tuning, simply plug and play. This cable is screened to minimise interference . Compatible with ALL Sega Mega Drive 2 consoles.


It also benefits from internal resistors connected in series with each RGB video line to reduce the brightness of the picture. The sync signal type is available as either "sync over composite video" (composite video + sync) or as CSYNC also known as "composite sync", and finally the SCART plug can be wired as either EuroSCART or  JP21, the choice is yours!


RCA / cinch plugs provide additional sound output, whilst still outputting sound through the SCART plug. This is for instances when using either a SCART to component converter (CSY-2100) or SCART to VGA converter, whereby the converters doesn't handle sound, therefore, the RCA / cinch connectors can be plug directly into sound equipment or component televisions.


Features:

  • No Tuning required, just plug and play.
  • True RGB video & stereo sound.
  • Constructed from custom screened cable especially made for Retro Gaming Cables.
  • Available with two output connector types, either a EuroSCART / Péritel plug for use with SCART televisions, SCART to HDMI converters and SCART to component video converters, or a JP21 pin plug also known as RGB-J or Japanese 21 pin for direct connection to the XRGB-1, XRGB-2 & XRGB-3 up-scalers. Please select from options.
  • Available with two sync types; Composite video + sync or CSYNC. Please select desired sync type from the options. For further information on sync types please see help.


Compatible with:

  • SCART enabled televisions (Please select EuroSCART / Péritel).
  • SCART to HDMI converters (Please select EuroSCART / Péritel).
  • SCART to component video converters (Please select EuroSCART / Péritel).
  • Direct connection to XRGB-1, XRGB-2 & XRGB-3 (Please select JP21 / RGB-J).
  • XRGB-mini Framemeister (Please select  JP21 / RGB-J only for use with original Japanese 21 pin to mini adapter cable supplied with the Framemeister unit, or select EuroSCART / Péritel if you have a EuroSCART to mini adapter cable).


Please see video below which demonstrates the excellent video and sound quality achieved from a Sega Mega Drive 2 using an RGB SCART cable from Retro Gaming Cables (select 480p for best quality).

All cables are tested before dispatch. Made in Great Britain. This is not an official Sega Product.





Compatibility
Console Mega Drive 2, Genesis 2, 32X, Nomad, Pico, multimega & CDX.
Region NTSC, PAL, SECAM
Country All Countries
Video and audio format
Aspect Ratio 16:9 (PAL & SECAM), 4:3 (NTSC)
RGB video? YES
Sync type Available as either "sync over composite video" (composite video + sync) or CSYNC (composite sync). Please select required version from the options.
Audio type Stereo
Cable construction
Shielded? YES
Connector A 9 Pin mini Din plug
Connector B EuroSCART / Péritel or JP21/RGB-J (select required version from the options).
Connector C 2 X Phono / RCA for sound breakout
Lead Length 1.5m
Weight 125g

Write a review

Note: HTML is not translated!
    Bad           Good

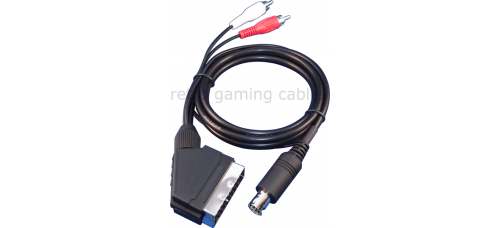

Sega Mega Drive 2 / Genesis 2 RGB audio video AV SCART Cable TV lead cord with RCA sound breakout

  • £11.99
