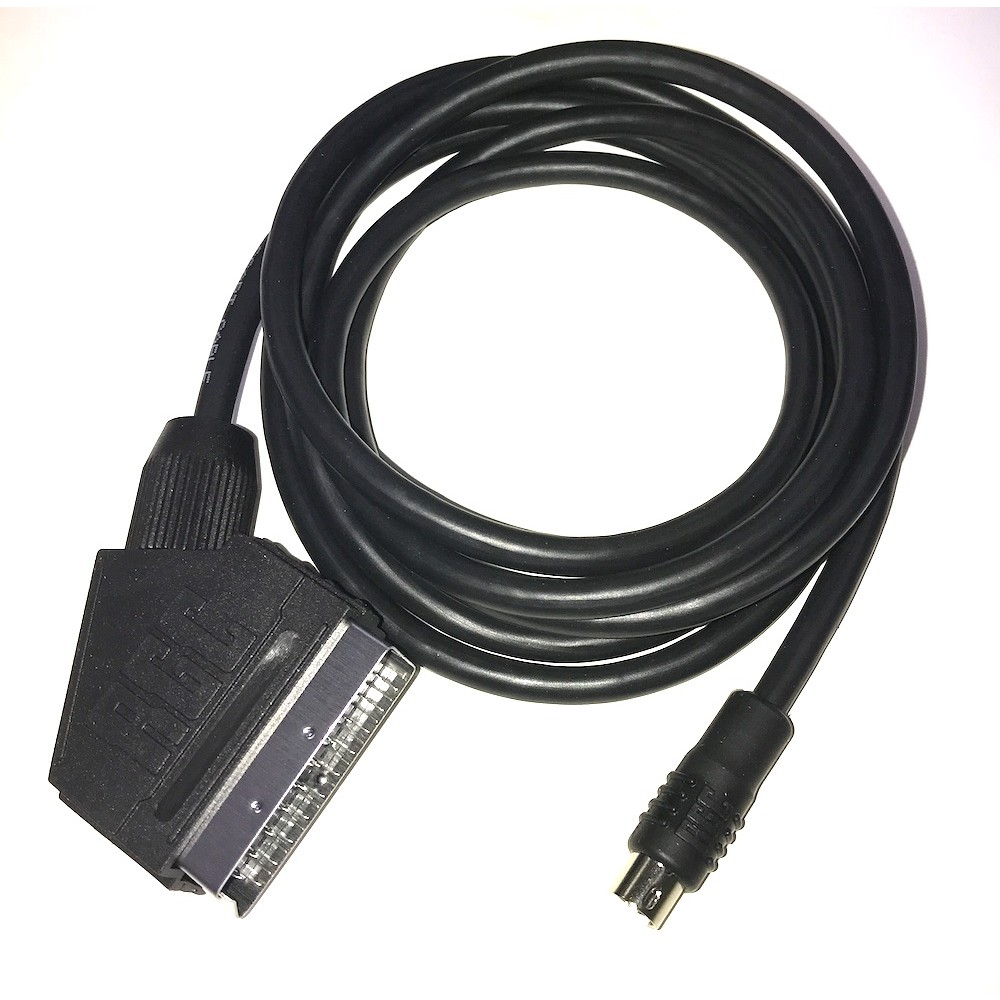

Level up with a PACKAPUNCH PRO RGB SCART! This cable supplies an RGB video signal and stereo sound from your RGB modified NES, Sega Game Gear, Philips CDi, Atari 2600, Colecovision, Intellivision and Panasonic 3DO. And is also compatible with the HAS Supergun. This cable is screened to minimise external interference and cable crosstalk between signals. This is achieved by using our new PACKAPUNCH cable which has individually shielded wires for RED, GREEN, BLUE, SYNC, audio left and right and also the DC voltage line which is used for RGB selection on your video receiving equipment. For RGB modification boards for the NES, 2600 and Sega Game Gear see Tim Worthington's Website for details.
This cable is wired using the following pin assignment. Wired to the following Specs:
8 Pin miniDIN plug (looking into back of connector)
8 7 6
5 4 3
Shell = GND
Pin 8 = RED
Pin 7 = GREEN
PIN 6 = BLUE
PIN 5 = +5 Volts
PIN 4 = GND
PIN 3 = SYNC
PIN 2 = Audio Left
PIN 1 = Audio Right
Why upgrade to a PACKAPUNCH cable?:
- Protects against external magnetic interference.
- Protects against crosstalk between individual signals inside the cable, so no need to run external audio cables.
- Available in various lengths.
- No Tuning required, just plug and play.
- True RGB video & stereo sound.
- Constructed from custom screened cable especially made for Retro Gaming Cables.
- Fully wired/ grounded SCART plug using a custom Printed Circuit Board.
- Custom over-moulded MultiAV plug with integrated strain relief, manufactured in-house using injection-mould machine.
Need to breakout audio from your SCART cable? Check out this in-line adapter which extracts audio whilst maintaining the audio through the SCART cable.
|Console||Compatible with the following consoles which have been modified for RGB video and use an 8 pin Mini DIN socket wired to the same specification as the XRGB Framemeister Mini's RGB input port. Nintendo Entertainment System NES - NESRGB, Sega Game Gear - GGTV, Atari 2600 - 2600RGB, all designed by Tim Worthington. The HAS supergun, Philips CDi, Colecovision, Intellivision and Panasonic 3DO.|
|Video and audio format|
|Sync type||Supports all sync types, as this is a pass-through cable|
|Audio type||Stereo sound|
|Shielded?||Individually Shielded PACKAPUNCH cable. i.e. Each core inside the cable has its own shielding. Including the following; Red, Green, Blue, Sync, Audio Left, Audio Right and 5 volts line. And this is complemented by an overall foil shield.|

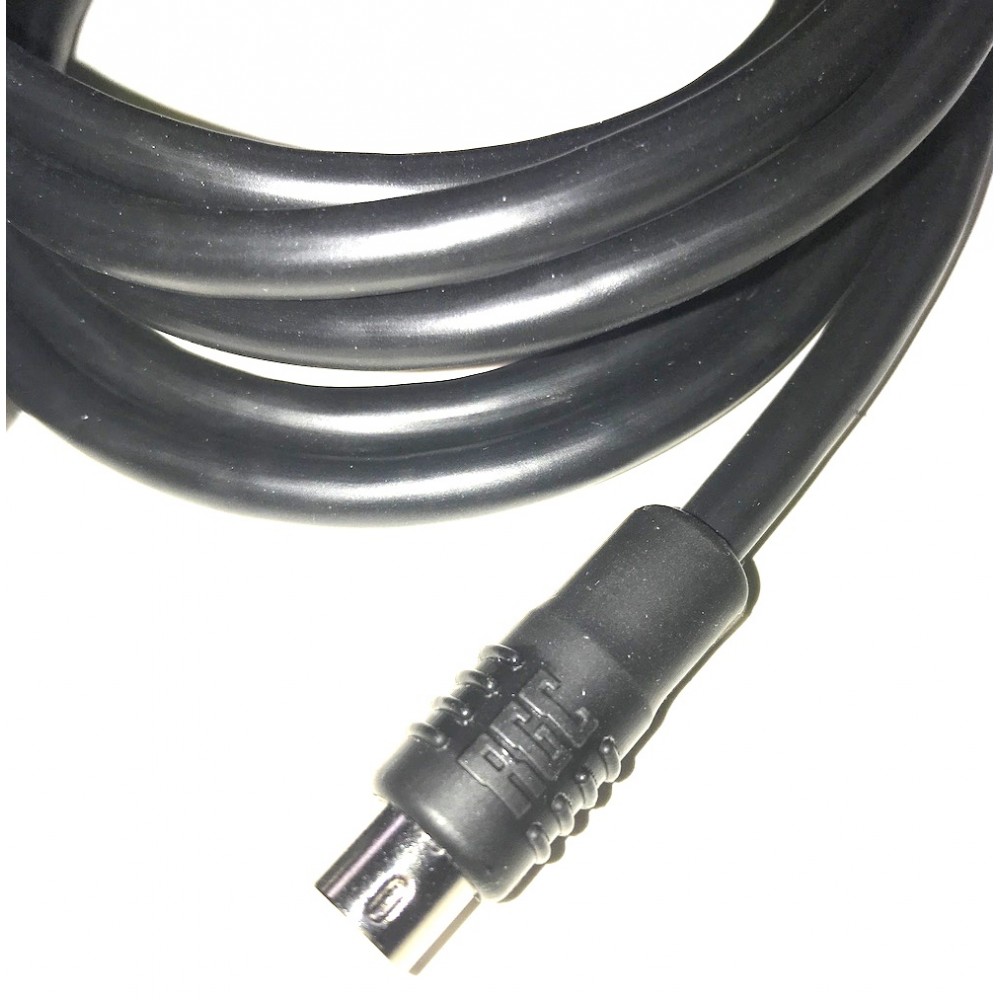

|Connector A||8 pin Mini DIN - Wired to XRGB Framemeister Mini RGB port. Using our proprietary connector over moulding technology. With our RGC logo embedded on the top side of the connector.|

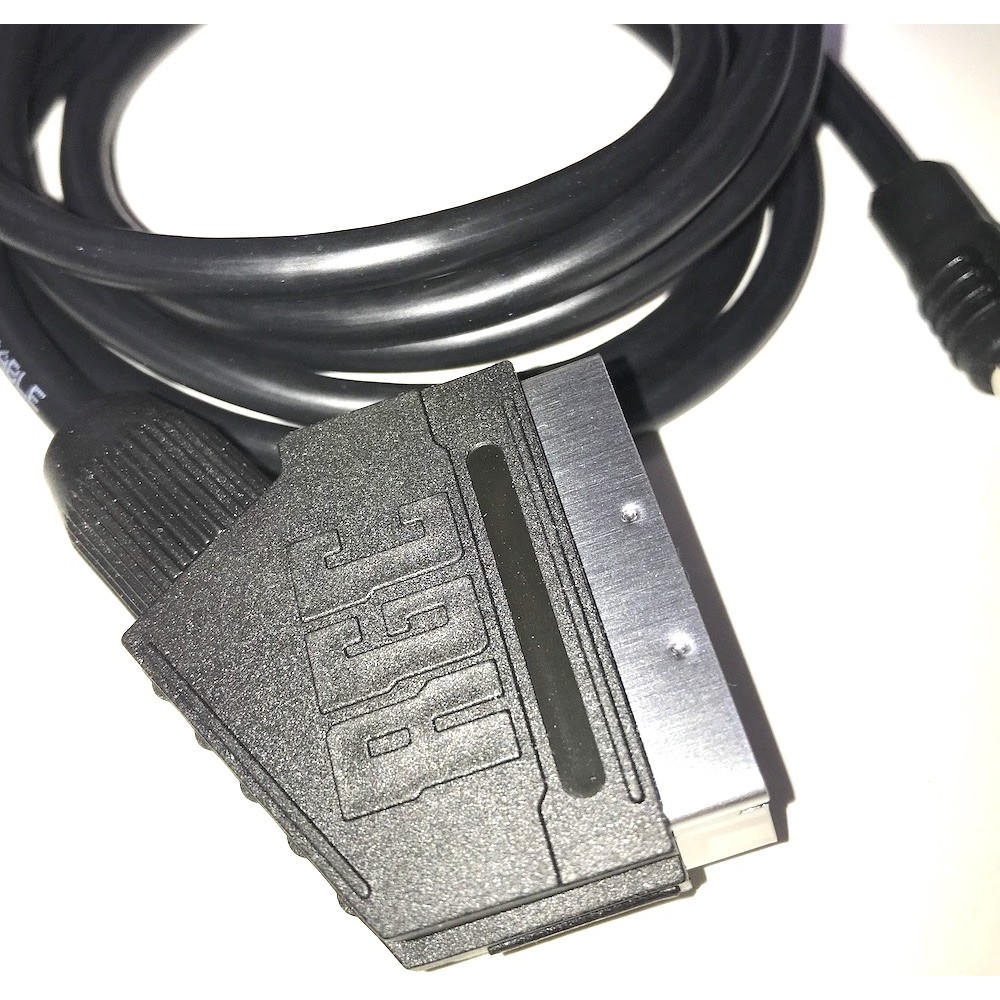

|Connector B||EuroSCART - With integrated Printed Circuit Board interface. Which has all the ground pins connected to the SCART plug. Cased in our custom made shroud with our RGC logo embedded either side.|
|Lead Length||1.8m / 6ft.|
