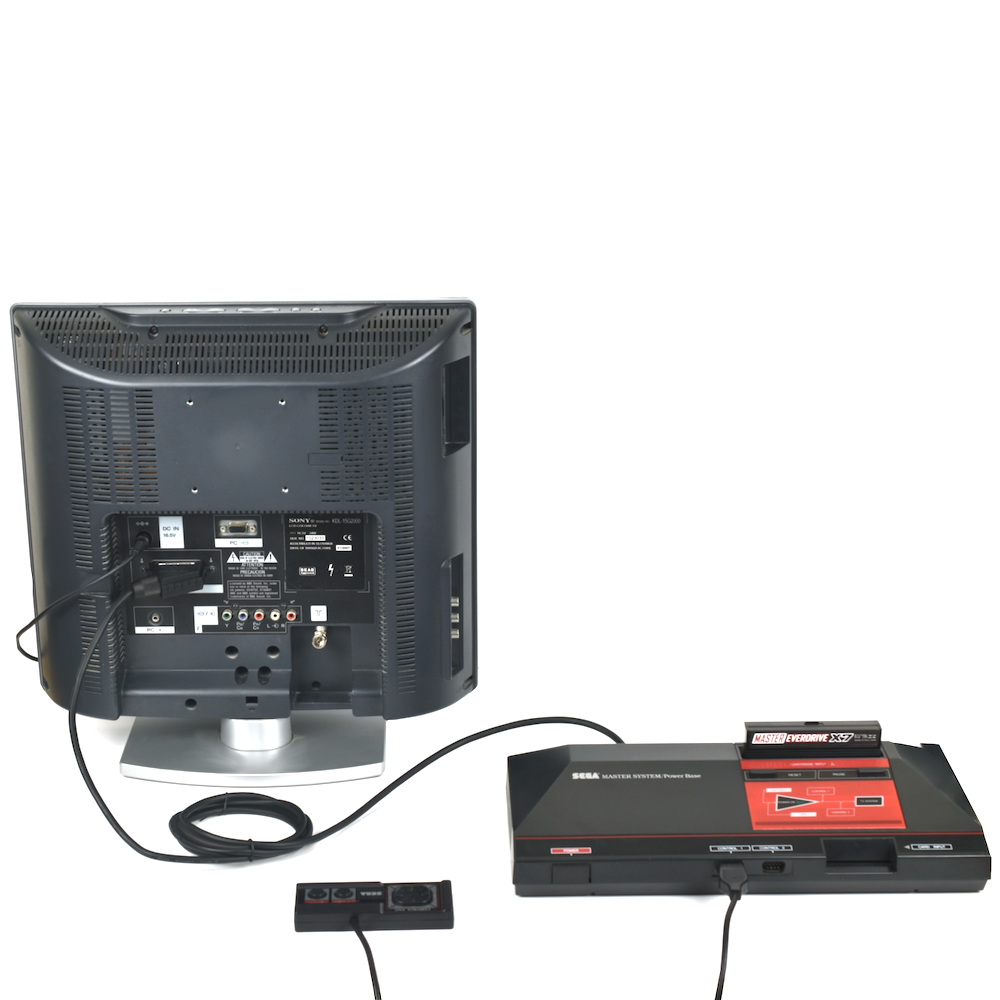

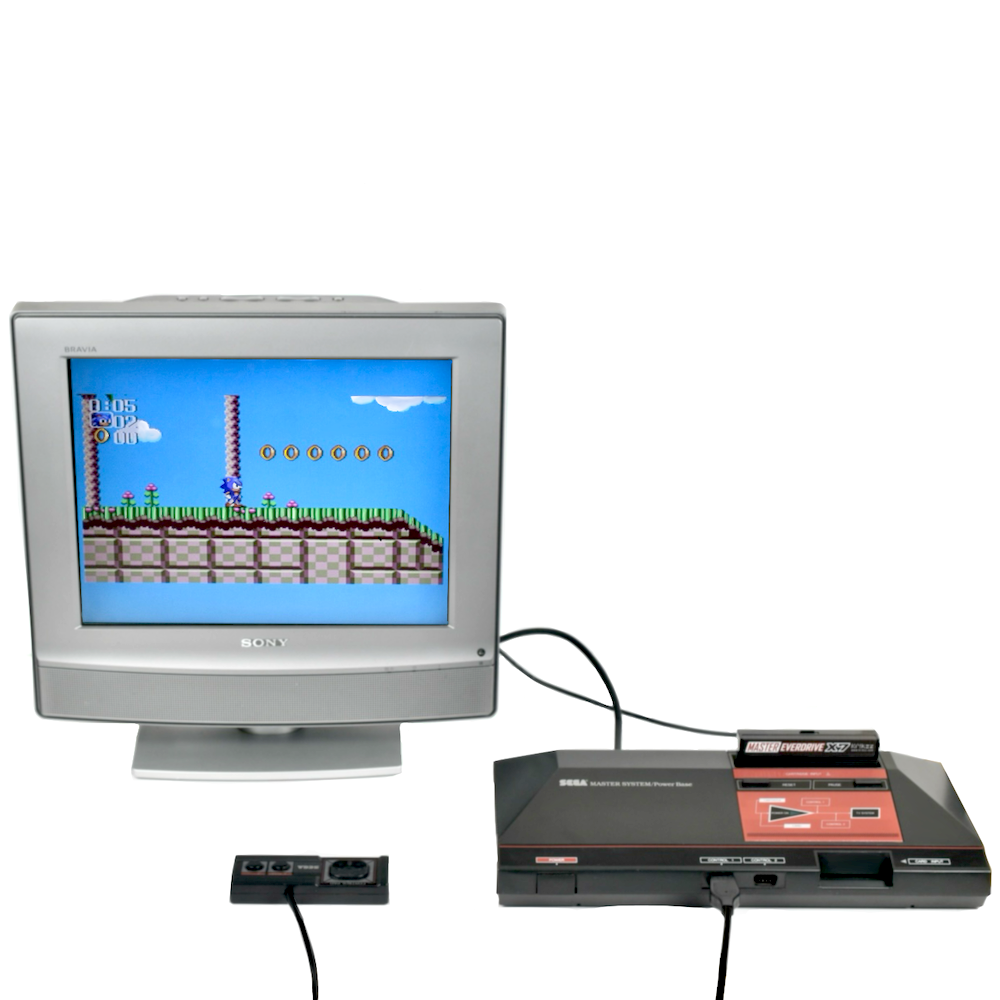

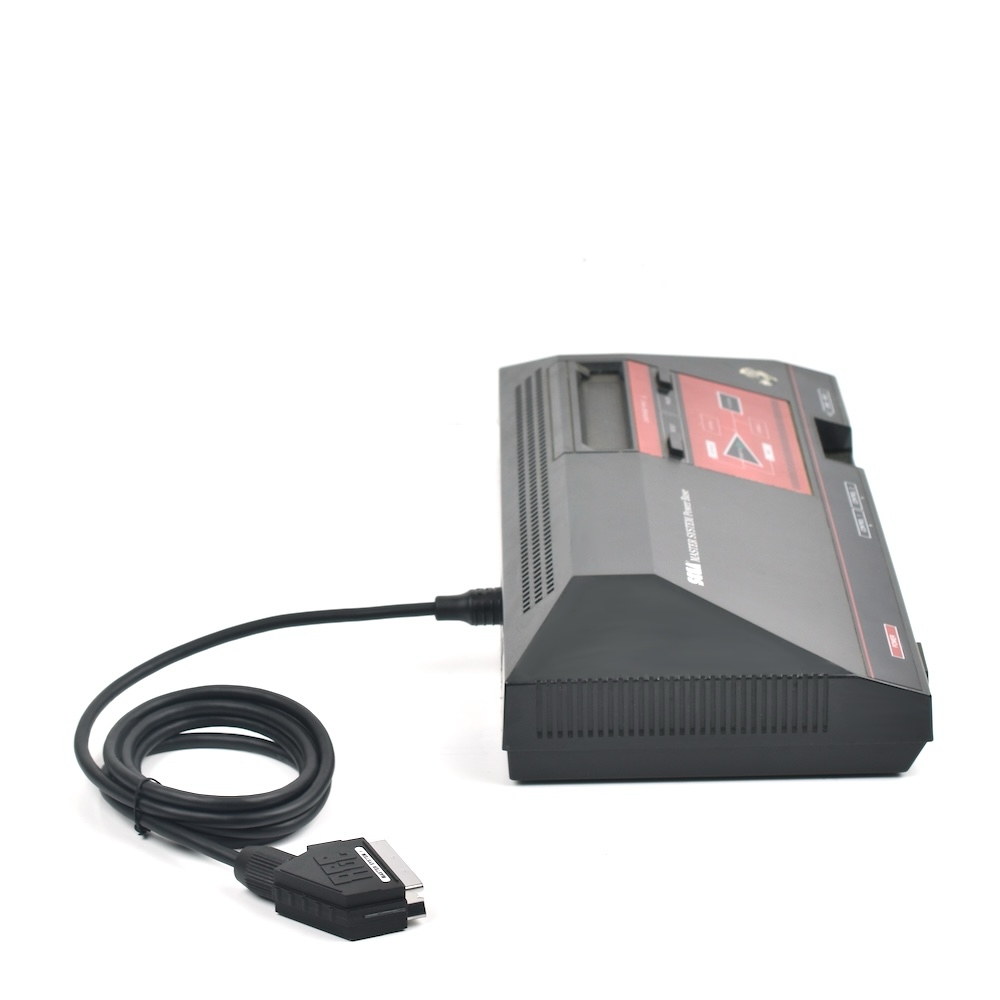

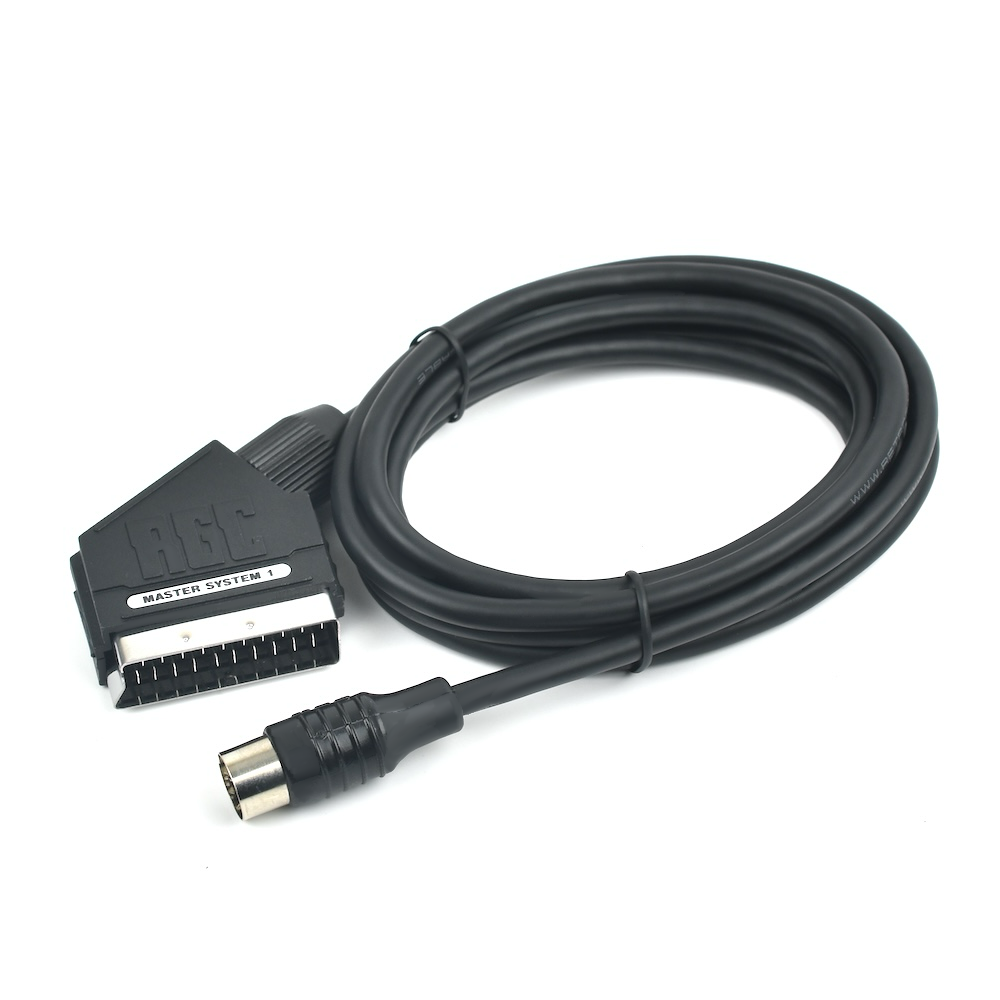

Finally we have made the Master System 1 / Mega Drive 1 and Genesis 1 PACKAPUNCH! The Ultimate SCART cable! This cable supplies an RGBS video signal and mono sound from your Master System 1 using our proprietary multi screened cable. Each signal inside this cable has its own braided shielding/screening, including the SYNC, RED, GREEN, BLUE, +5V and audio. This high quality cable supplies a composite sync (CSYNC) signal from the console and is correctly attenuated to reduce the high amplitude of a CSYNC signal using a 470 ohm resistor on the sync line. This is not compatible with the Model 2 Master System. Unfortunately the only option for the Master System model 2 is the good old RF cable :(. It also benefits from internal resistors and capacitors connected in series with each RGB video line. Wired for composite sync (CSYNC) to give the best picture possible, and also may reduce the jail-bar effect*.
Why upgrade to a PACKAPUNCH cable?:
- Protects against external magnetic interference.
- Protects against crosstalk between individual signals inside the cable.
- Available in various lengths. All cables which are not 1.8m are built to order, for example if you choose 3m you will need to wait a few working days.
Why use CSYNC?:
- For monitors which require CSYNC to function, like the Sony PVM 2950G, PVM 2950QM, NEC Multisync 4PG and XM29 plus.
- When using Switching Extron Crosspoint Matrix Switcher.
- If you're a CSYNC FanBoy.
CSYNC will also work on most regular modern television sets when correct attenuated using a 470 ohm resistor. For further information on this subject please our Demystifying RGB Sync guide. It benefits from internal 220uF capacitors and 75 ohm resistors connected in series with each RGB video line to remove any direct current (DC) signals, which may impede the true alternating current signal used in signal transmissions.
- No Tuning required, just plug and play.
- True RGB video & mono sound. We also offer a Stereo Sound version for the Genesis 1 / Mega Drive 1 only.

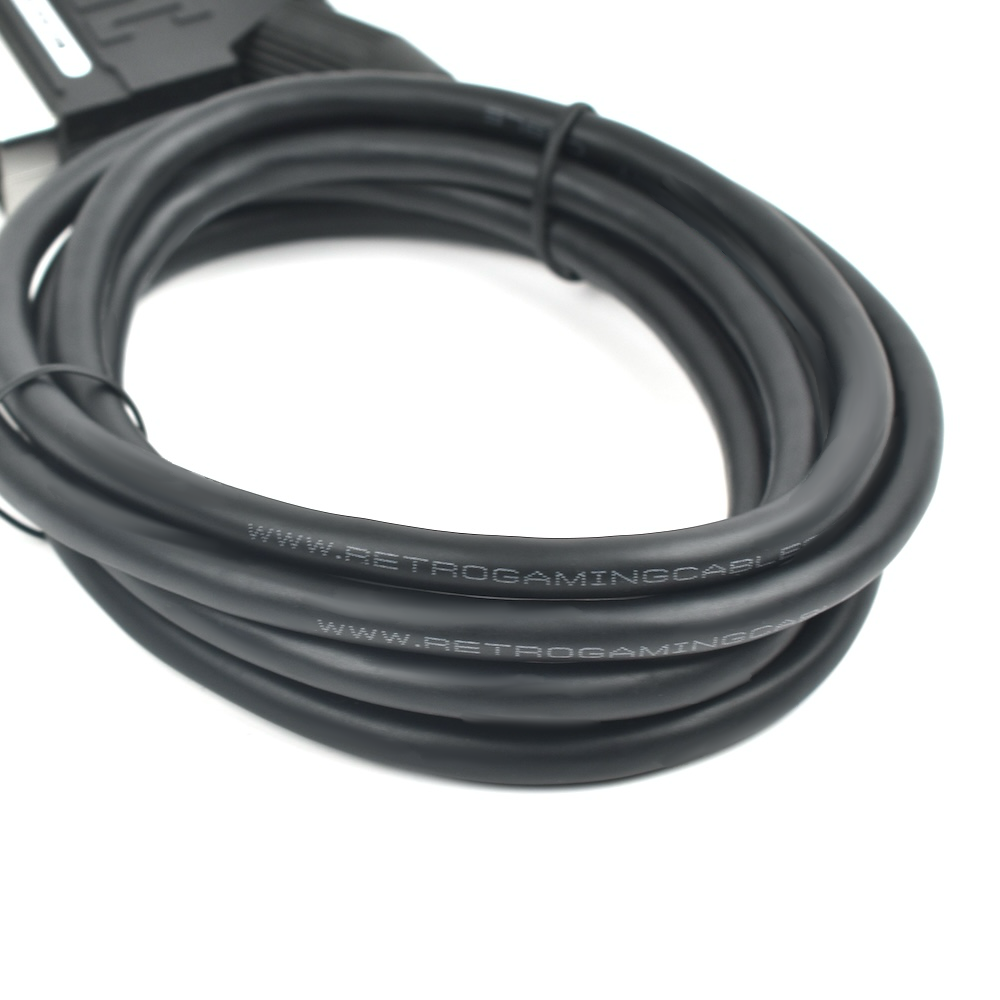

- Constructed from custom individually screened PACKAPUNCHTM (separately shielded cores) cable especially made for Retro Gaming Cables.
- Composite sync output (CSYNC) correctly attenuated for 75Ω operation. For further information on sync types please our Demystifying RGB Sync guide.
- Fully wired/ grounded SCART plug using a custom Printed Circuit Board.

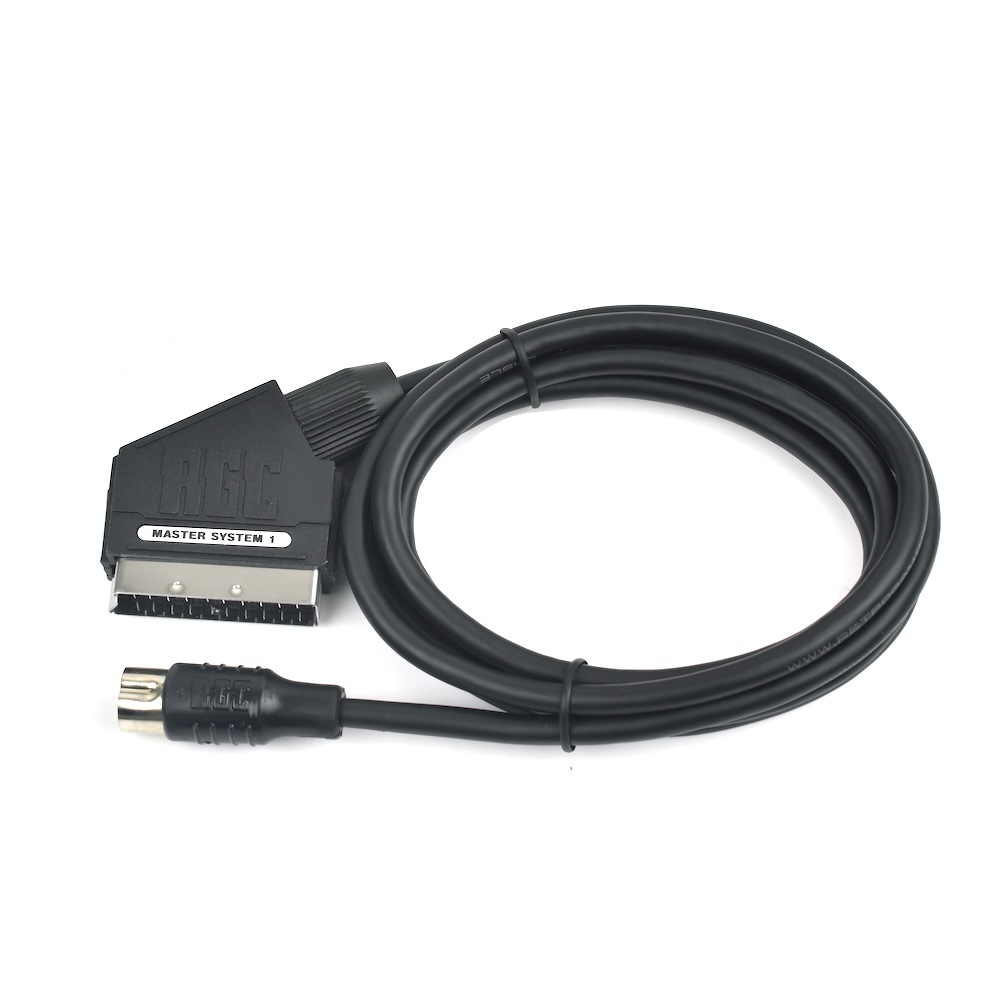

- Custom ID label on SCART plug.
- RGC custom 8PIN U-DIN plug with integrated strain relief, manufactured in-house using injection-mould machine.
- Quality Panasonic Capacitors.
- CSYNC output correctly attenuated for 75Ω operation.
The SCART Printed Circuit Board Design is Copyright © of Retro Gaming Gables.
Need to breakout audio from your SCART cable? Check out this in-line adapter which extracts audio whilst maintaining the audio through the SCART cable.
All cables are tested before dispatch. Made in Great Britain. This is not an official Sega Product. * A composite sync (CSYNC) cable may greatly reduce jail bars, however to completely remove jails bars an RGB-bypass modification may be required.
|Region||NTSC, PAL, SECAM|
|Video and audio format|
|Sync type||CSYNC (composite sync).|
|Audio type||Mono (Supplied to left & right speakers).|
|Shielded?||Individually Shielded PACKAPUNCH cable. i.e. Each core inside the cable has its own shielding. Including the following; Red, Green, Blue, Sync, Audio and 5 volts line. And this is complemented by an overall foil shield.|

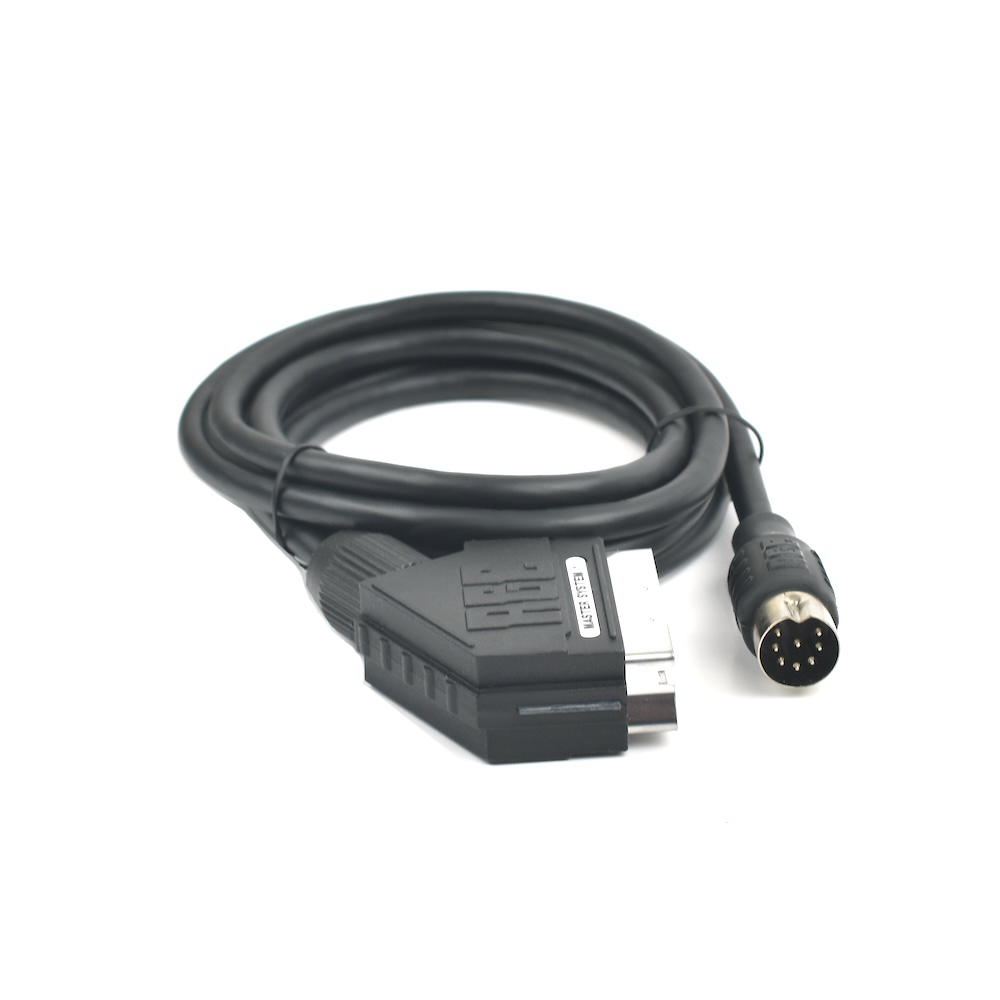

|Connector A||8 pin Large U- DIN - Using our proprietary connector over moulding technology. With our RGC logo embedded on the top side of the connector.|
|Connector B||EuroSCART - With integrated Printed Circuit Board interface. Which has all the ground pins connected to the SCART plug. Cased in our custom made shroud with our RGC logo embedded either side.|
|Lead Length||1.8m / 6ft. Also Available as 3m / 10ft on a pre-order basis.|
