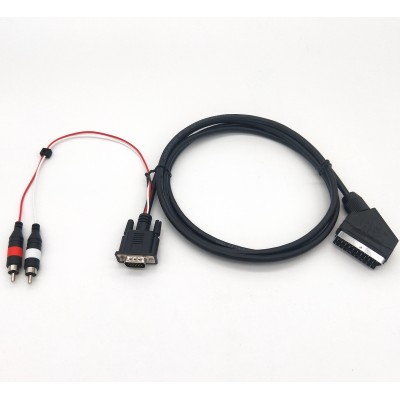

Upgrade to an RGB SCART! This cable supplies an RGB video signal and Stereo sound from your Nt Mini, DAC or MiSTer FPGA project via the IO board. This cable is screened to minimise external interference and cable crosstalk between signals. This is achieved by using our new PACKAPUNCH cable which has individually shielded wires for RED, GREEN, BLUE, SYNC, audio and also the DC voltage line which is used for RGB selection on your video receiving equipment. This cable will only work on SCART TV's using a 2nd revision Nt mini which can be identified by the "designed in Seattle" on the bottom of the console.
Why upgrade to a PACKAPUNCH cable?:
- Protects against external magnetic interference.
- Protects against crosstalk between individual signals inside the cable.
- True RGB video & stereo sound.
- Constructed from custom screened cable especially made for Retro Gaming Cables.
- 470 ohm resistor on the sync line.
All cables are tested before dispatch. When using the MiSTer on a SCART TV please ensure VGA pin 9 is activate for 5 volts, not 3.3v, which can be set on the IO board near the VGA socket. This signal is used to force a SCART TV into RGB mode.
When using on the Analogue DAC please ensure the DAC is set to "RGB Composite Synch" in the Advanced Settings.
|Region||NTSC, PAL, SECAM|
|Video and audio format|
|Audio type||Stereo sound|
|Connector B||EuroSCART / Péritel|
