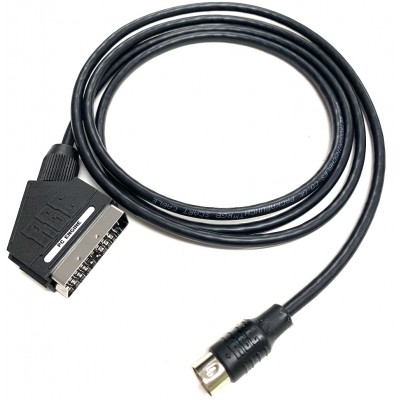

SCART cable for an RGB modified PC Engine duo and TurboGrafx-16 console which uses an 8 pin DIN socket (circular). This cable is wired using the following pin assignment. Wired to the following Specs:
8 Pin DIN plug (looking into back of connector)
3 8 1
Pin 8 = GREEN
Pin 7 = RED
PIN 6 = BLUE
PIN 5 = Audio Right
PIN 4 = +5V
PIN 3 = SYNC
PIN 2 = GND
PIN 1 = Audio Left
If you require a different pin assignment please advise when placing the order. If you are unsure about the pin assignment please consult the modifier of the console.

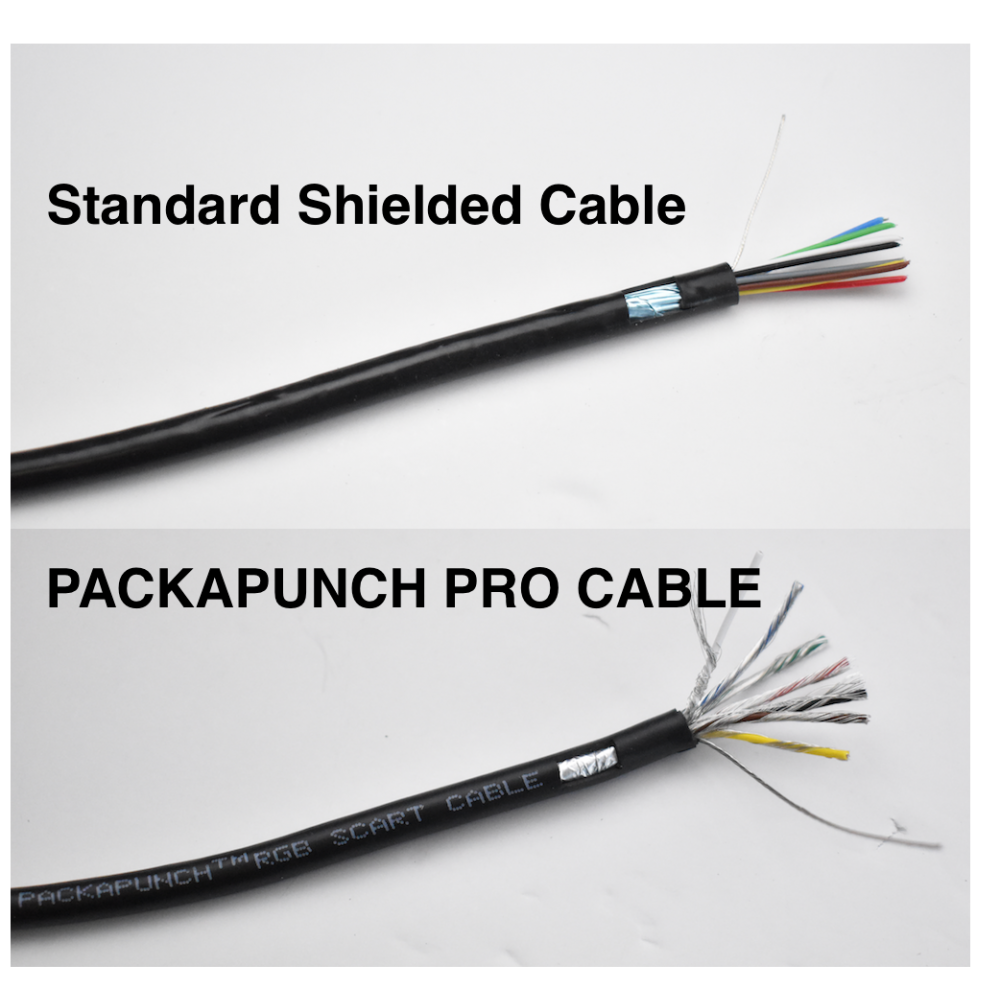

Why upgrade to a PACKAPUNCH cable?:
- Protects against external magnetic interference.
- Protects against crosstalk between individual signals inside the cable.
- Available in various lengths. All cables which are not 1.8m are built to order, for example if you choose 3m you will need to wait a few working days.
- True RGB video & stereo sound.
- Constructed from custom screened cable especially made for Retro Gaming Cables.
- Wired for sync over composite video. Also available as Composite Sync (CSYNC). For further information on sync types please our Demystifying RGB Sync guide.
- Fully wired/ grounded SCART plug using a custom Printed Circuit Board.
- Custom over-molded MultiAV plug with integrated strain relief, manufactured in-house using injection-mold machine.
- Custom ID label on SCART plug.
All cables are tested before dispatch. Made in Great Britain. This is not an official NEC Product.
|Console||NEC PC Engine, PC Engine duo and TurboGrafx-16|
|Video and audio format|
|Shielded?||Individually Shielded PACKAPUNCH cable. i.e. Each core inside the cable has its own shielding. Including the following; Red, Green, Blue, Sync, Audio Left, Audio Right and 5 volts line. And this is complemented by an overall foil shield.|
|Connector A||8 pin Large DIN - Using our proprietary connector over moulding technology. With our RGC logo embedded on the top side of the connector.|
|Connector B||EuroSCART - With integrated Printed Circuit Board interface. Which has all the ground pins connected to the SCART plug. Cased in our custom made shroud with our RGC logo embedded either side.|
|Lead Length||1.8m / 6ft. Also Available as 3m / 10ft on a pre-order basis.|
