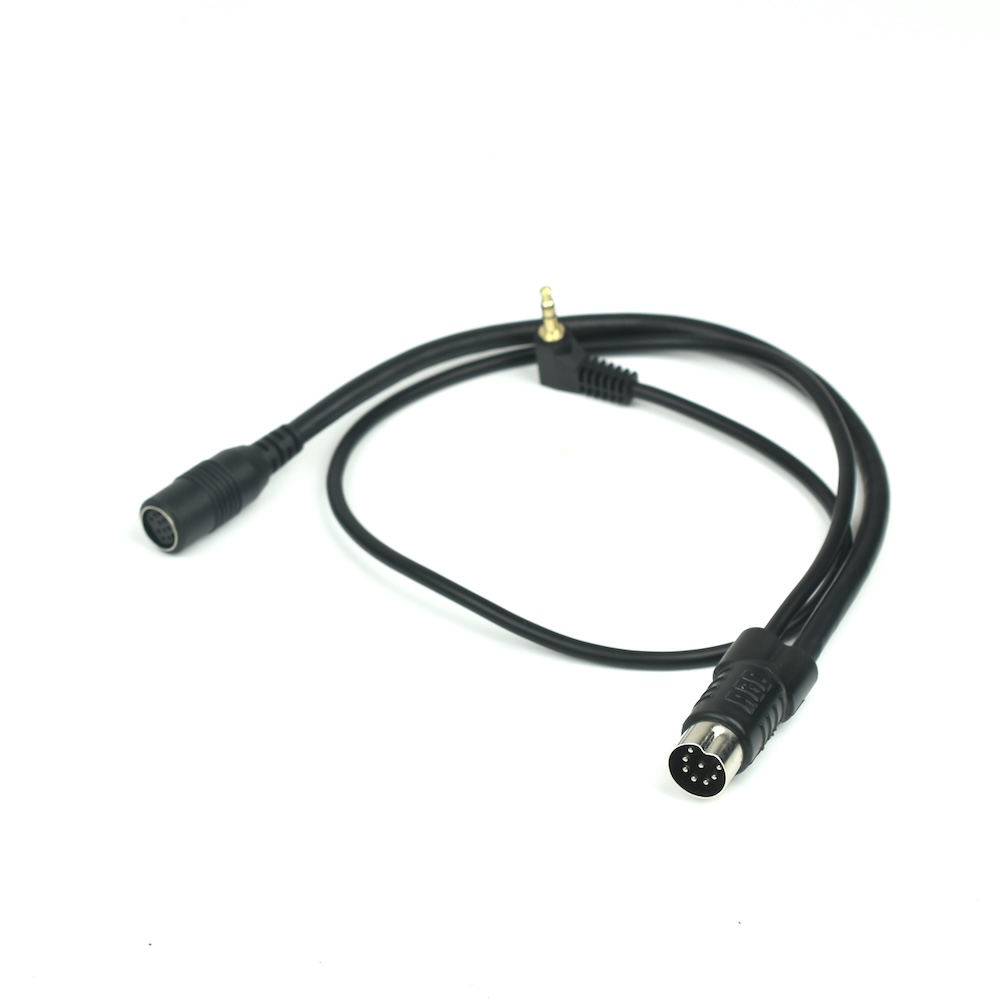

This female version of our Mega Drive / Genesis 1 patch cable enables you to not only use this for interfacing with your 32X it allows you to remove the 32X unit from the console whilst leaving the patch cable plugged into your Mega Drive unit. You then plug a Mega Drive 2 / Genesis 2 cable into the female socket.
Please note that this adapter cable is not wired for 5 volts, therefore it will not work with SCART TV's when used in conjunction with a Mega Drive 2 SCART cable. It will however work on the OSSC, Framemeister, Sony PVM/BVM monitors etc, as these do not require the 5 volts to switch into RGB mode.
Why upgrade to a PACKAPUNCH cable?:
- Protects against external magnetic interference.
- Protects against crosstalk between individual signals inside the cable.
- Female 9pin Mini DIN.
- RGC custom 8pin U-DIN plug with integrated strain relief.
All cables are tested before dispatch. Made in Great Britain. This is not an official Sega product.
|Console||Sega Mega Drive 1 & Sega Genesis 1. Sega Super 32X, Sega Genesis 32X, Sega Mega Drive 32X and Sega Mega 32X.|
|Region||PAL, NTSC, SECAM|
|Video and audio format|
|Sync type||Supplies both sync over composite video and composite sync (CSYNC)|
|Connector A||8pin U-DIN (Mega Drive/Genesis AV OUT)|
|Connector B||Female 9pin mini-DIN|
|Connector C||3.5mm Stereo Jack (For Mega Drive headphone socket)|
