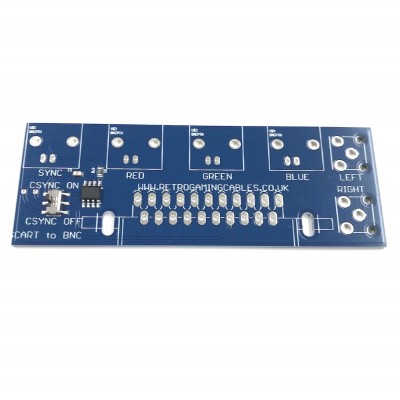

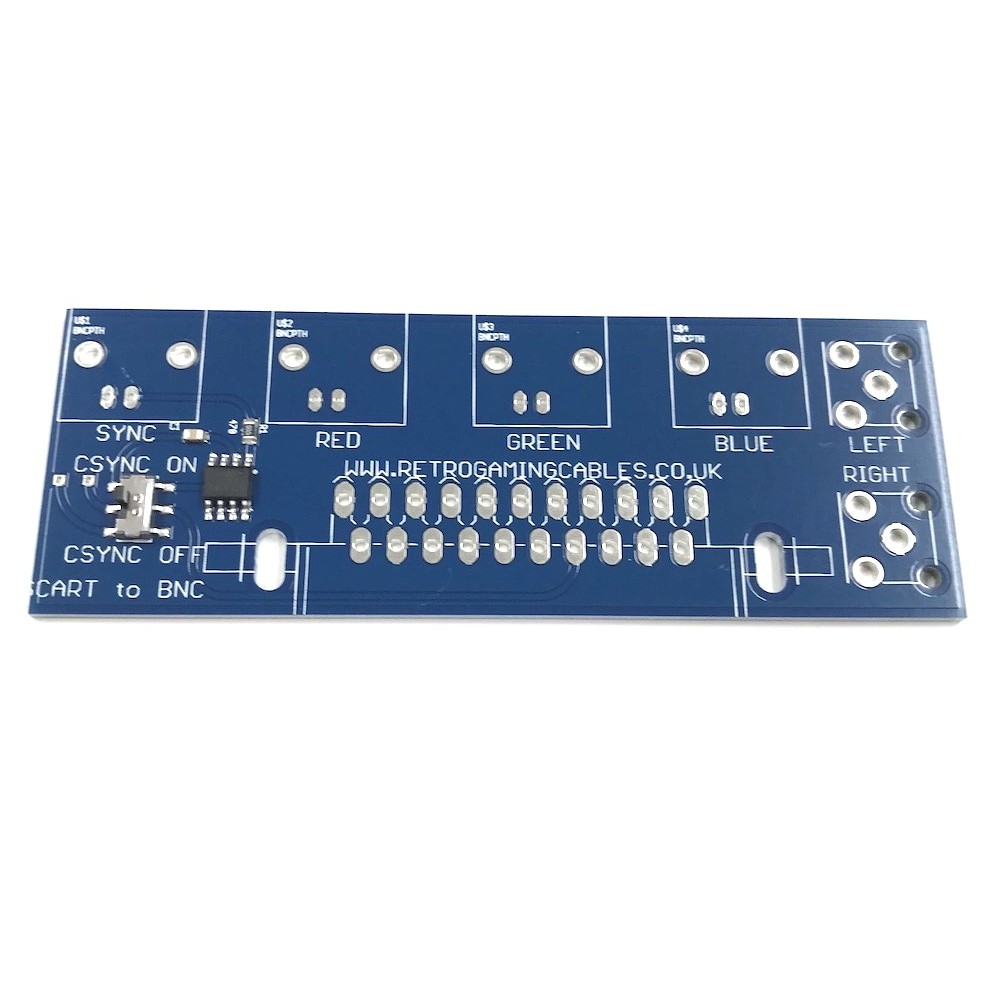

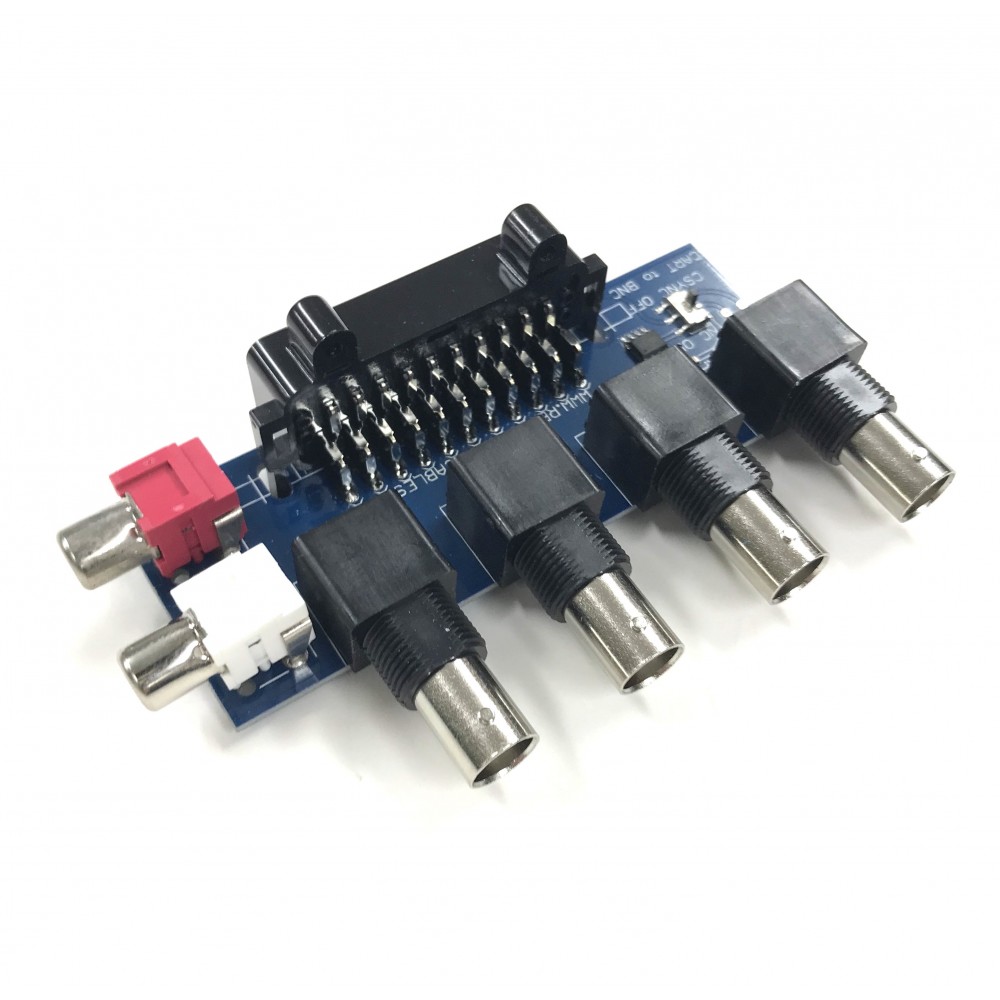

Available as fully assembled or PCB only, female EuroSCART to BNC breakout board which also extracts audio from the SCART cable. This board comes with an integrated sync separator circuit which can be switched off.
Power requirements for (CSYNC) video sync separator:
Requires a EuroSCART cable which is wired for either 5 volts or 12 volts on pin number 8 of the SCART plug. This is needed to power up the LM1881 video sync separator circuit and without this required voltage you will not get a stable picture on your monitor. Please see diagram below which shows the location of pin 8 . If there is a wire attached to this pin then you should be good to go. If you are unsure whether your cable is wired correctly please contact us for assistance. All video game console RGB SCART cables from Retro Gaming Cables are compatible with the video sync separator version.
