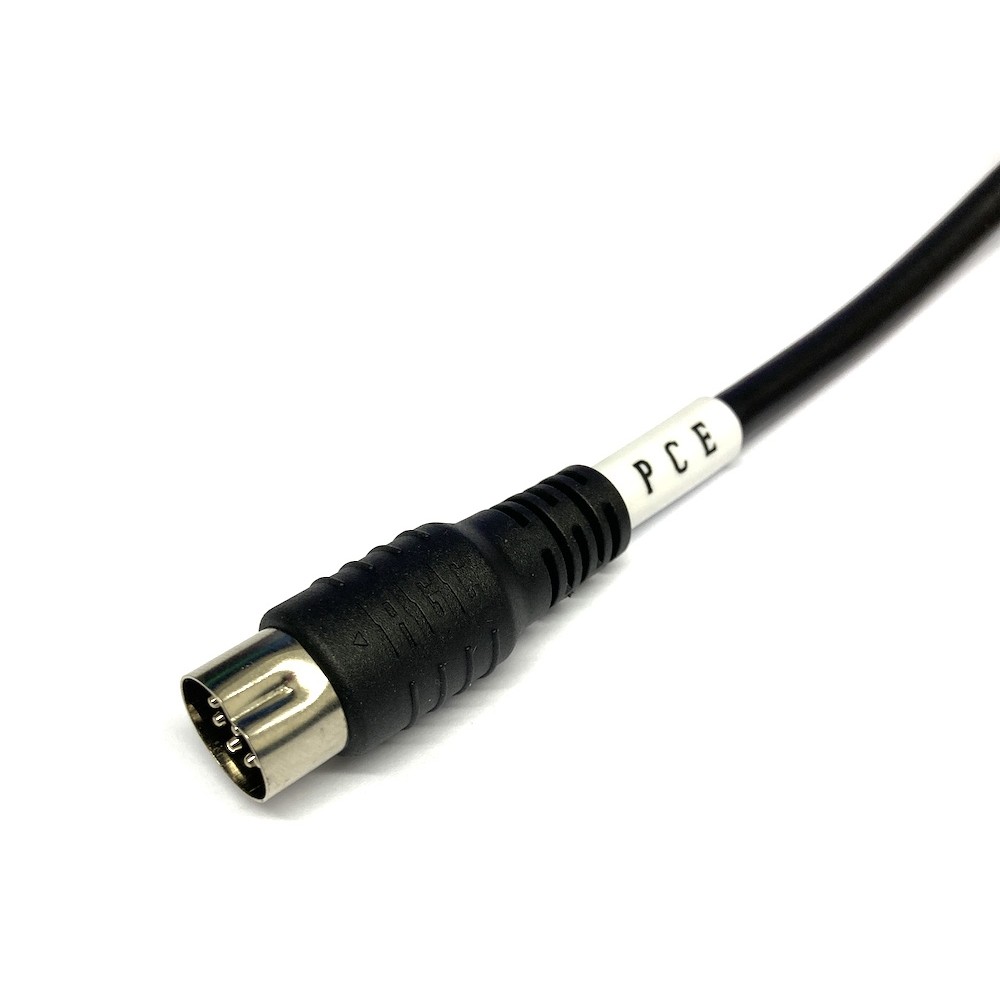

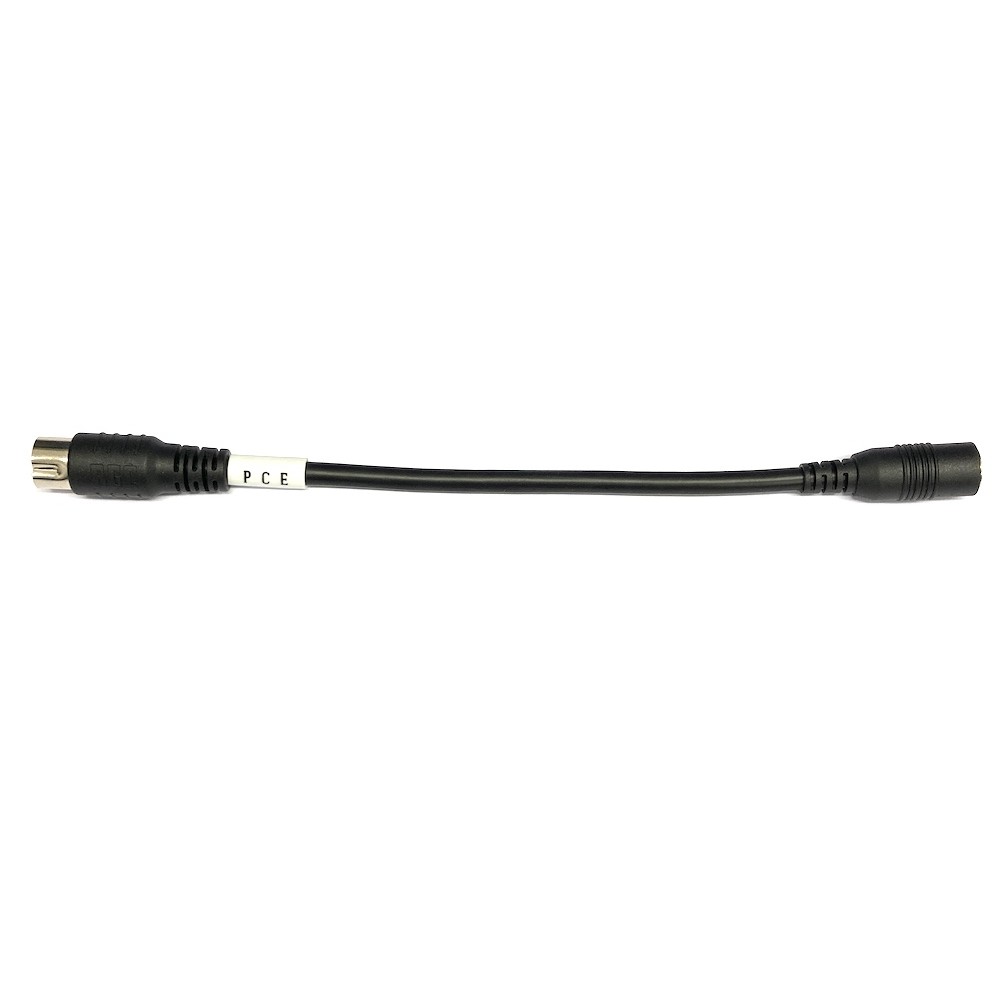

Convert your Mega Drive 2 / Genesis 2 RAD2X and YPbPr cables for use on RGB modified PC Engine duo and TurboGrafx-16 consoles, which uses an 8 pin DIN socket (circular). Constructed using our priority PACKAPUNCH cabling. This cable is wired using the following pin assignment. Wired to the following Specs:

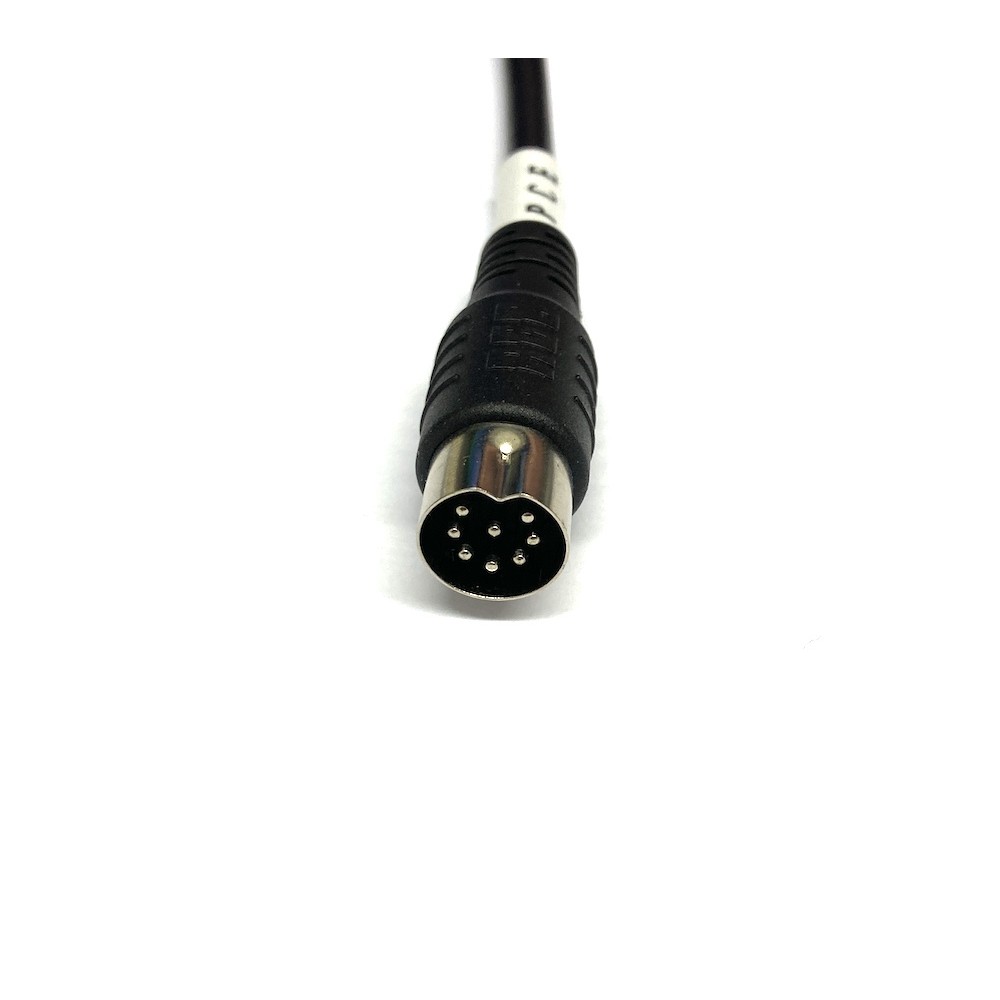

8 Pin DIN plug (looking into back of connector)
3 8 1
Pin 8 = GREEN
Pin 7 = RED
PIN 6 = BLUE
PIN 5 = Audio Right
PIN 4 = +5V
PIN 3 = SYNC
PIN 2 = GND
PIN 1 = Audio Left
Compatible with following cables*:
Why use a PACKAPUNCH cable?:
- Protects against external magnetic interference.
- Protects against crosstalk between individual signals inside the cable.
*Not for use with our Mega Drive 2 RGB SCART cable, as we wire our Mega Drive 2 cables for CSYNC, and the RAD2X is wired for sync over composite video.
