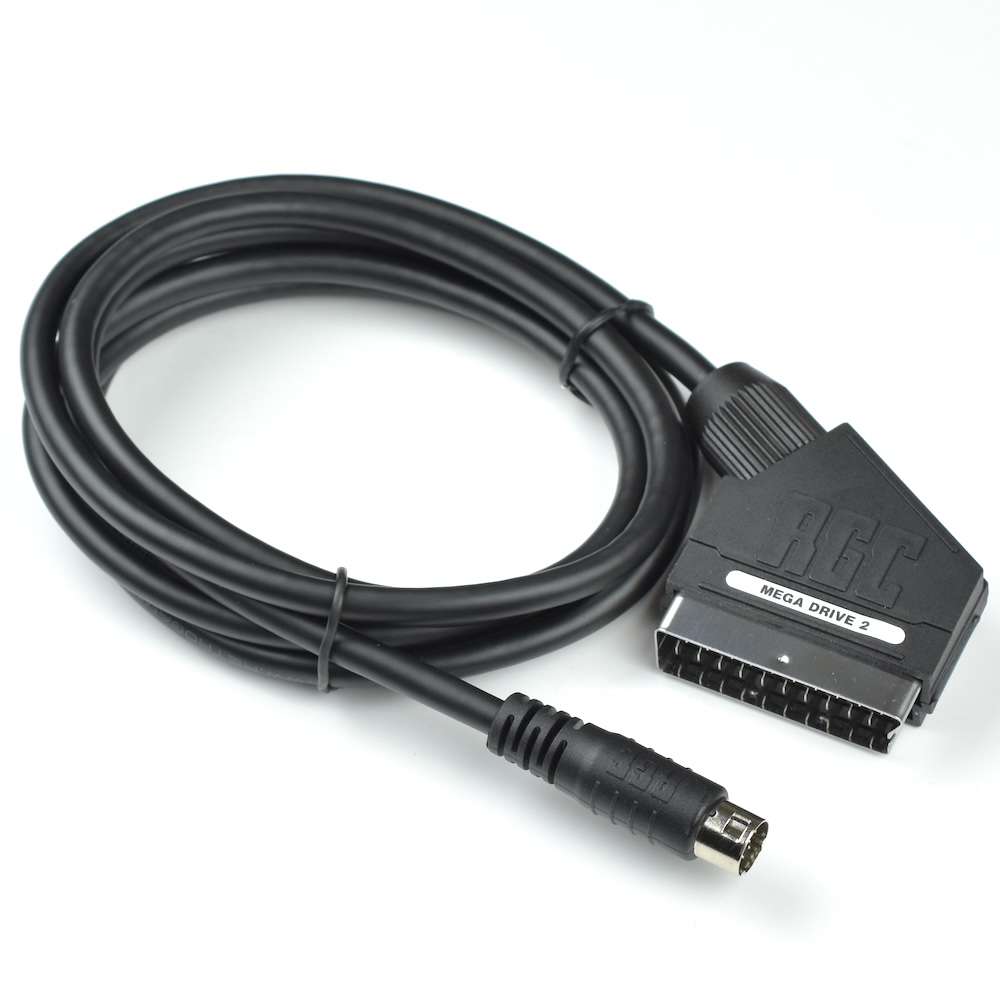

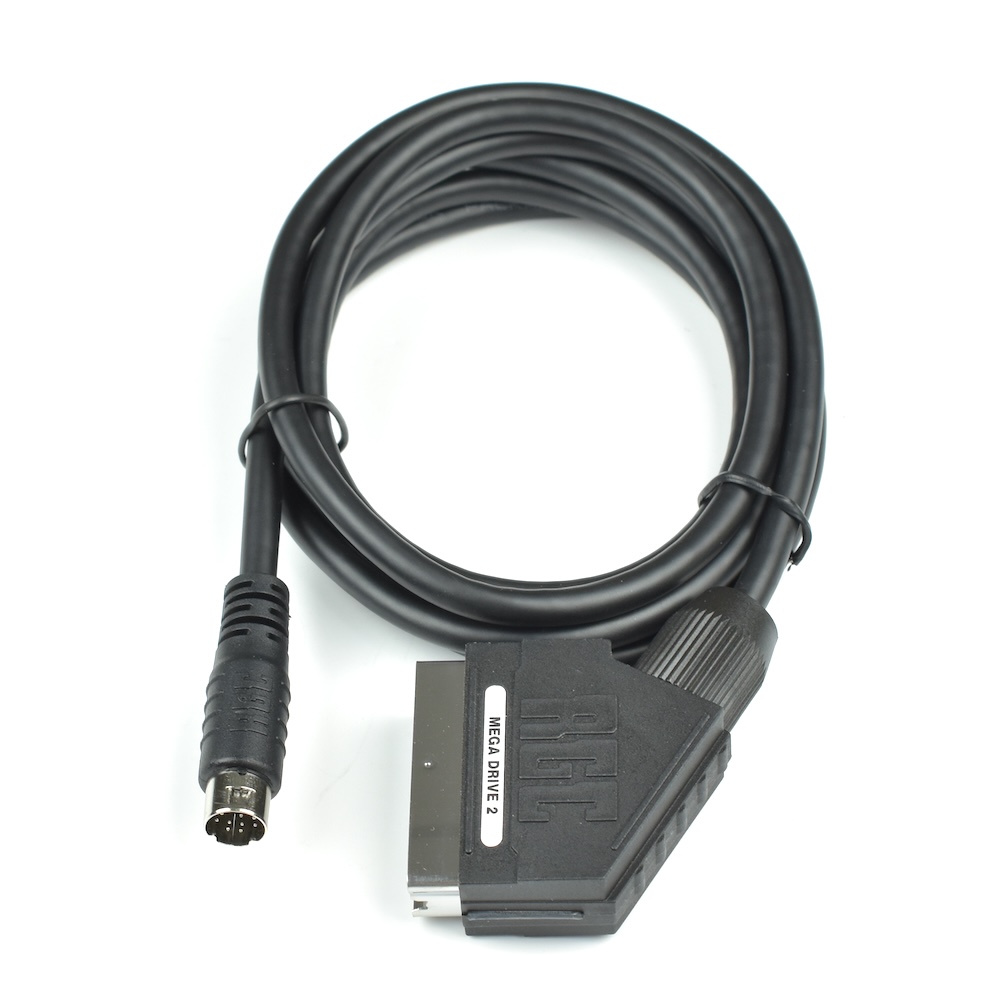

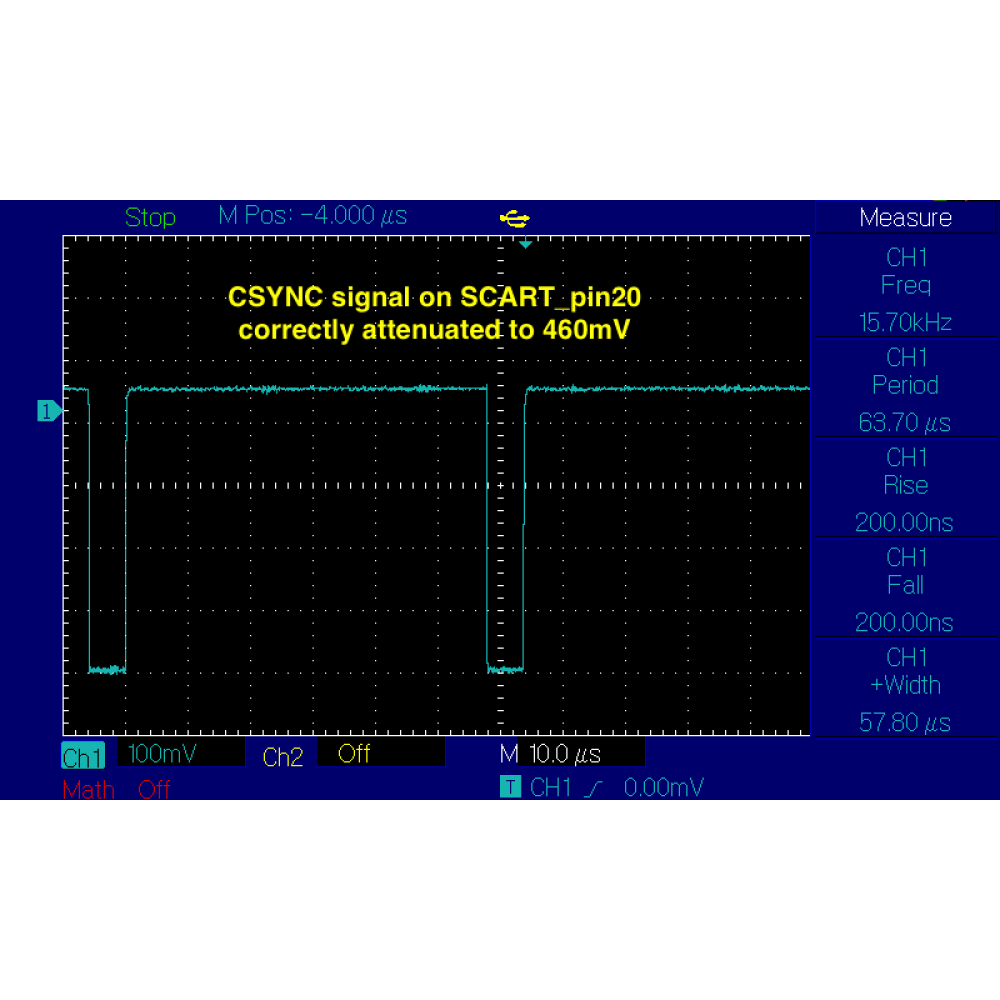

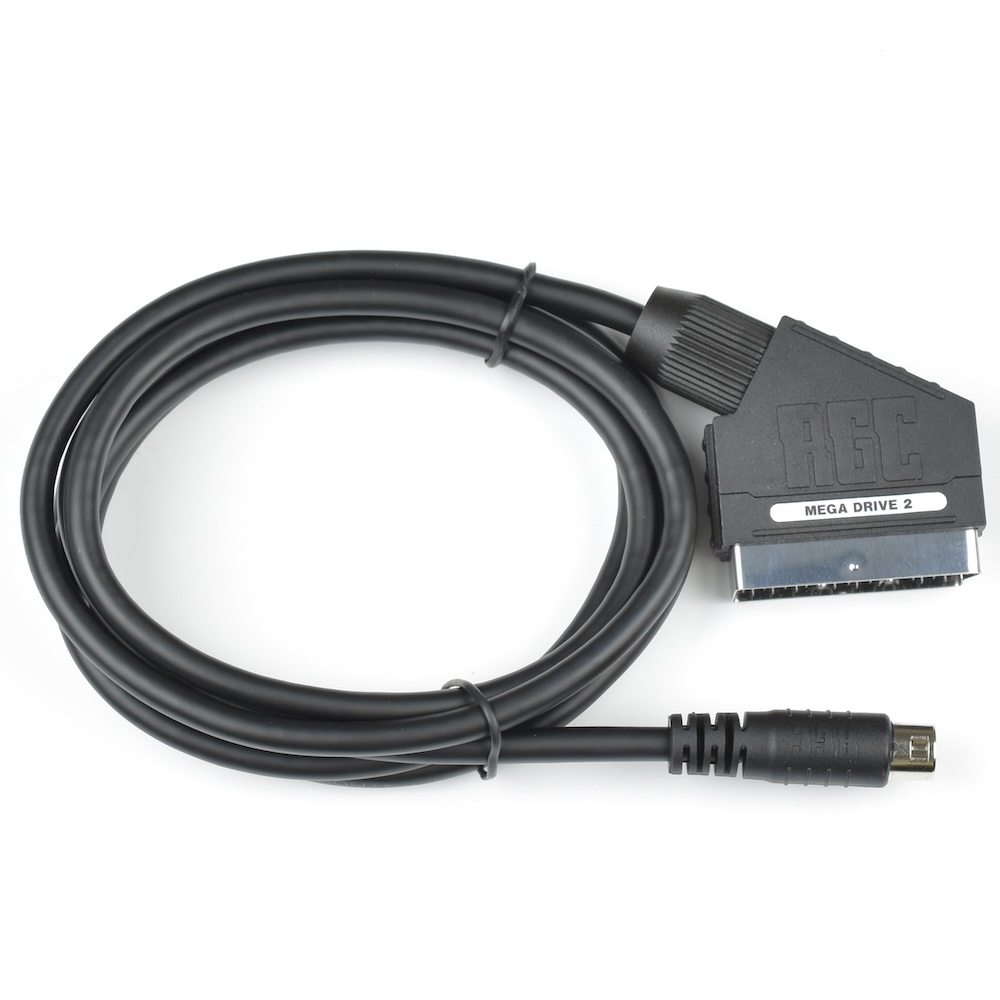

Finally we have made the Mega Drive 2 PACKAPUNCH! The Ultimate SCART cable! This cable supplies an RGBS video signal and stereo sound from your Mega Drive 2, 32X add-on, Genesis 2, dbGrafx Booster TTP and Super SD System 3 using our proprietary multi screened cable. Each signal inside this cable has its own braided shielding/screening, including the SYNC, RED, GREEN, BLUE, +5V, Audio Left and Audio Right. This high quality cable supplies a composite sync (CSYNC) signal from the console and is correctly attenuated to reduce the high amplitude of a CSYNC signal using a 470 ohm resistor on the sync line.
Why use a PACKAPUNCH cable?:
- Protects against external magnetic interference.
- Protects against crosstalk between individual signals inside the cable.
- Available in various lengths. All cables which are not 1.8m are built to order, for example if you choose 3m you will need to wait a few working days.
Why use CSYNC?:
- For monitors which require CSYNC to function, like the Sony PVM 2950G, PVM 2950QM, NEC Multisync 4PG and XM29 plus.
- When using Switching Extron Crosspoint Matrix Switcher.
- If your a CSYNC FanBoy.
- No Tuning required, just plug and play.
- True RGB video & stereo sound.
- 220uF capacitors on the RGBS lines, and 75ohm resistors on the RGB lines. Composite sync output (CSYNC) correctly attenuated using a 470 ohm resistor. For further information on sync types please our Demystifying RGB Sync guide.
- Constructed from custom individually screened PACKAPUNCHTM (separately shielded cores) cable especially made for Retro Gaming Cables.
- Fully wired/ grounded SCART plug using a custom Printed Circuit Board.
- Custom ID label on SCART plug.
- Quality Panasonic capacitors.
- RGC custom 9pin Mini DIN with integrated strain relief. Which will also work the Genesis 3 console.
- Compatible with the dbGrafx Booster TTP by db-electronics.ca
- PACKAPUNCHTM PRO CABLE available in various lengths.
Compatible with following consoles:
- Sega Mega Drive 2 - All regions
- Sega Genesis 2
- Sega Genesis 3
- Sega Nomad
- Sega Pico
- Sega Multimega
- Sega CDX
Compatible with following PC Engine and TurboGrafx-16 add-ons.
- dbGrafx Booster TTP by db-electronics.
- Super SD System 3 by Terraonion.
- Engine Block AV (TurboBooster) from Stone Age Gamer.
Compatible with following video equipment and converters:
- SCART enabled televisions.
- SCART to HDMI converters.
- SCART to component video converters.
- RGB-mini Framemeister via EuroSCART to mini adapter.
- Sony PVM and BVM monitors via a Female SCART to BNC adapter.
- OSSC (Open Source Scan Converter).

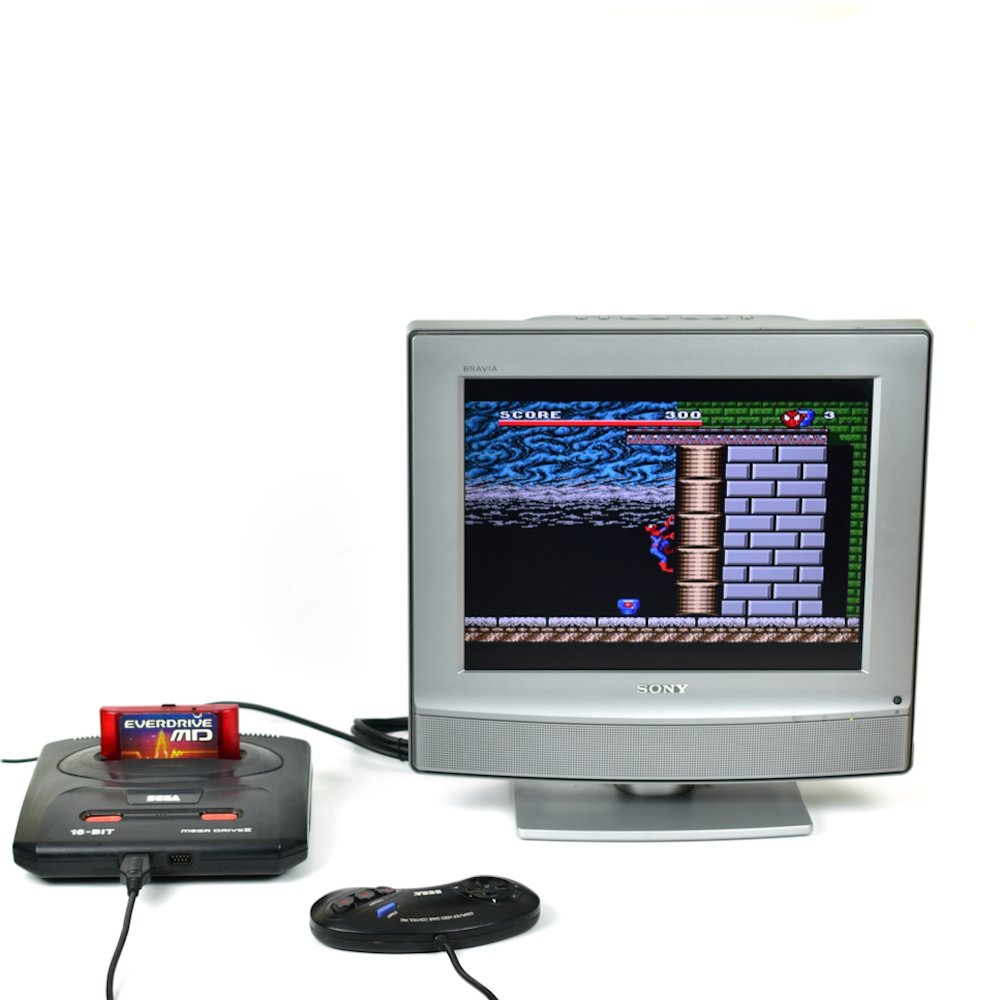

Please see video below which demonstrates the excellent video and sound quality achieved from a Sega Mega Drive 2 using an RGB SCART cable from Retro Gaming Cables compared to a cheap generic cable

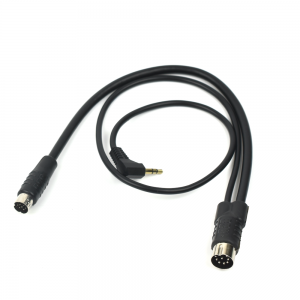

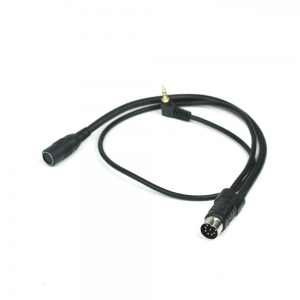

Need to breakout audio from your SCART cable? Check out this in-line adapter which extracts audio whilst maintaining the audio through the SCART cable.
All cables are tested before dispatch. Made in Great Britain. This is not an official Sega Product. * A composite sync (CSYNC) cable may greatly reduce jail bars, however to completely remove jails bars an RGB-bypass modification may be required.
|Console||Mega Drive 2, Genesis 2 & 3, 32X, Nomad, Pico, multimega & CDX. And also the dbGrafx Booster TTP by db-electronics.ca, Super SD System 3|
|Region||NTSC, PAL, SECAM|
|Video and audio format|
|Sync type||CSYNC (composite sync).|
|Shielded?||Individually Shielded PACKAPUNCH cable. i.e. Each core inside the cable has its own shielding. Including the following; Red, Green, Blue, Sync, Audio Left, Audio Right and 5 volts line. And this is complemented by an overall foil shield.|

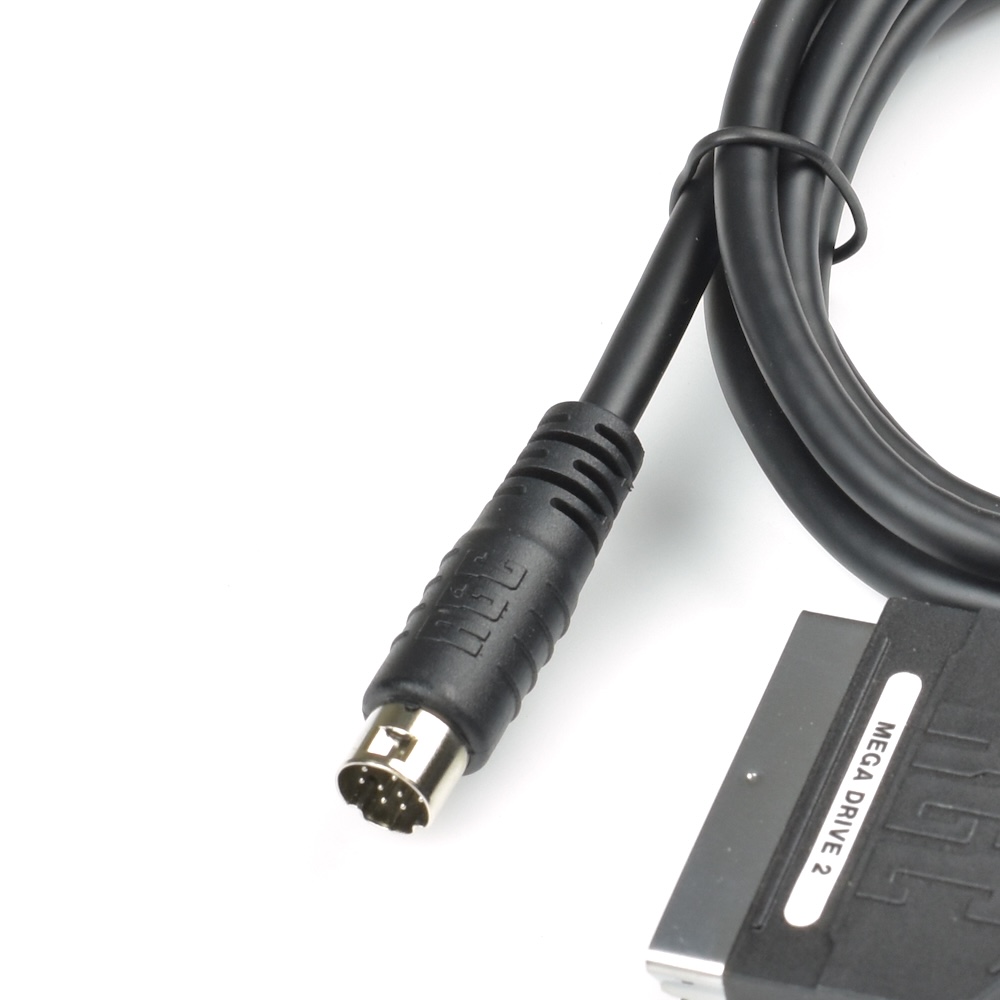

|Connector A||9 pin Mini DIN - Using our proprietary connector over moulding technology. With our RGC logo embedded on the top side of the connector.|

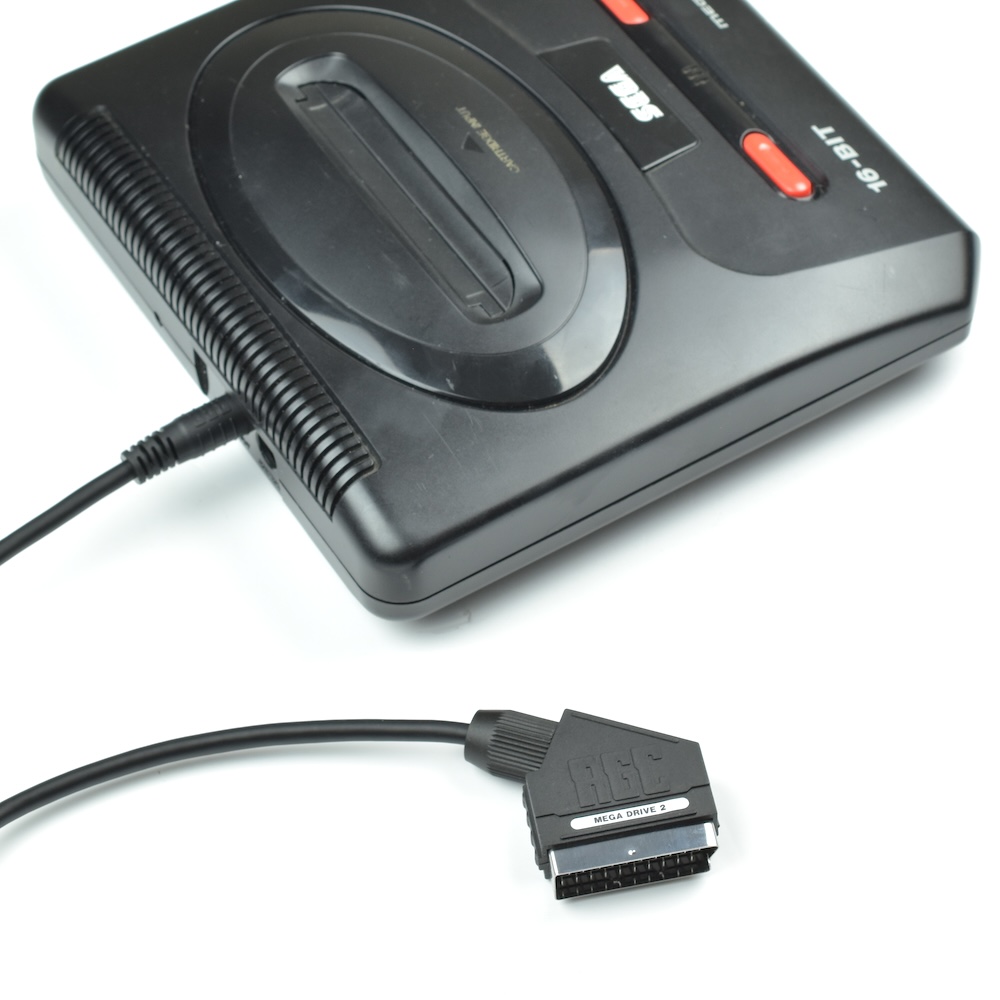

|Connector B||EuroSCART - With integrated Printed Circuit Board interface. Which has all the ground pins connected to the SCART plug. Cased in our custom made shroud with our RGC logo embedded either side.|
|Lead Length||1.8m / 6ft. Also Available as 3m / 10ft on a pre-order basis.|
