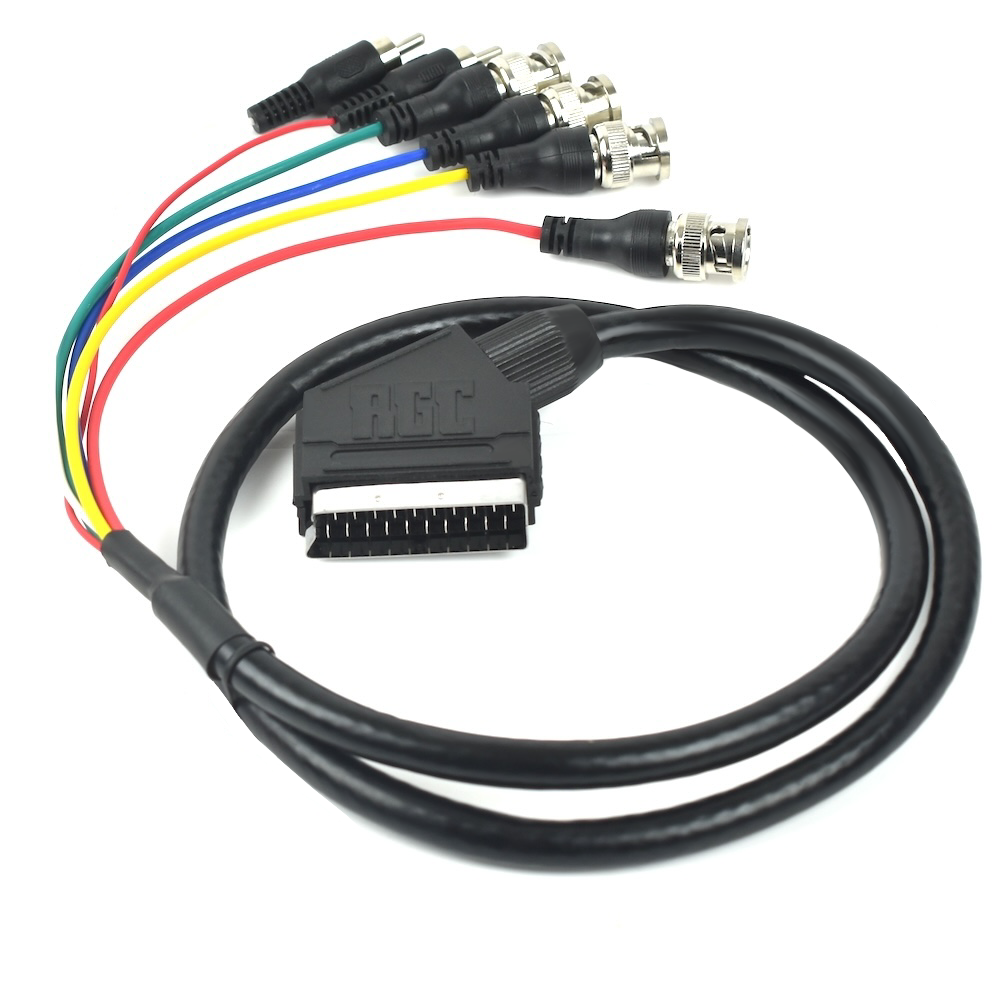

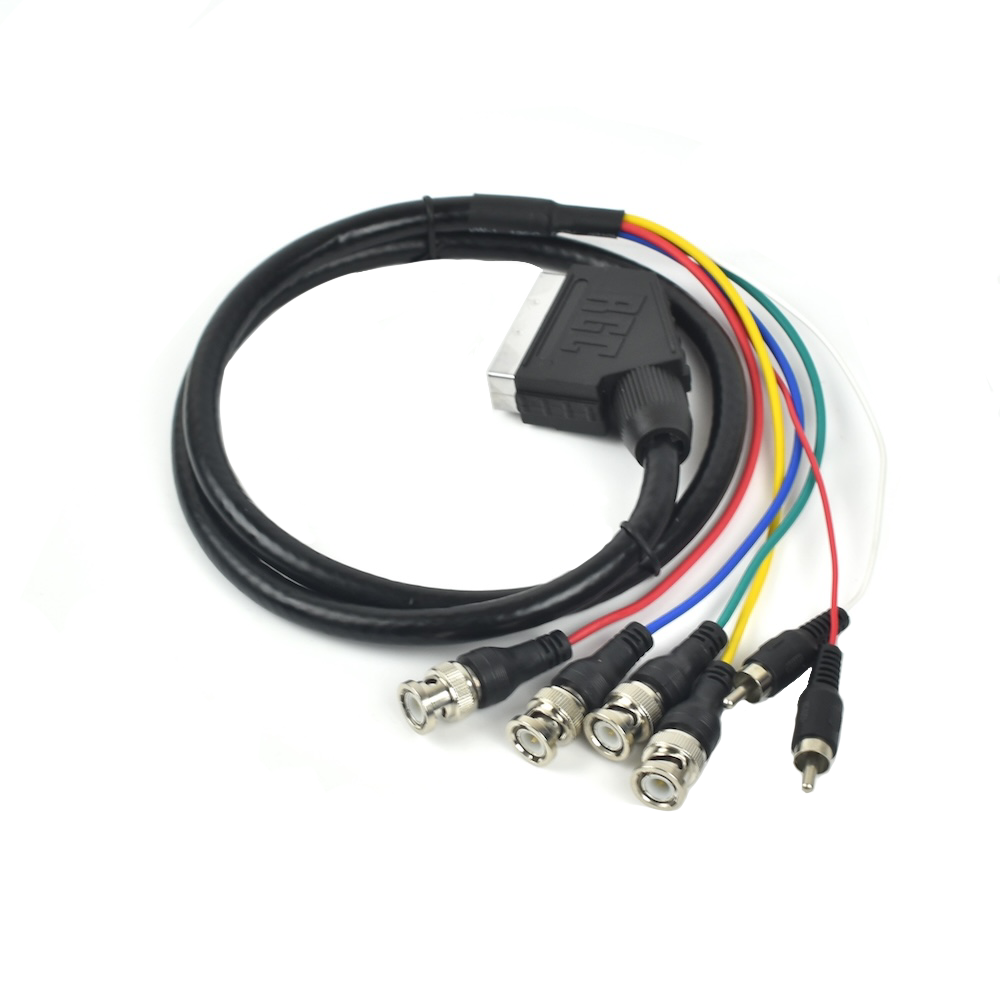

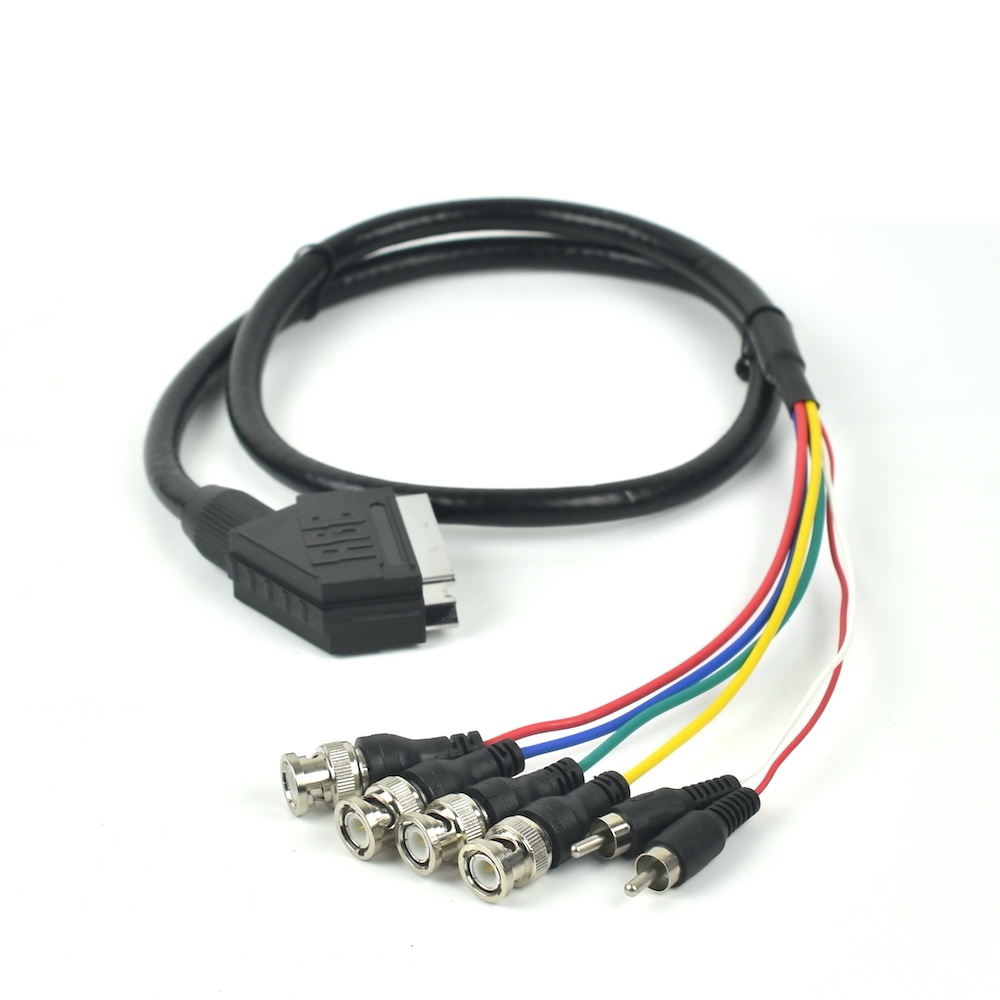

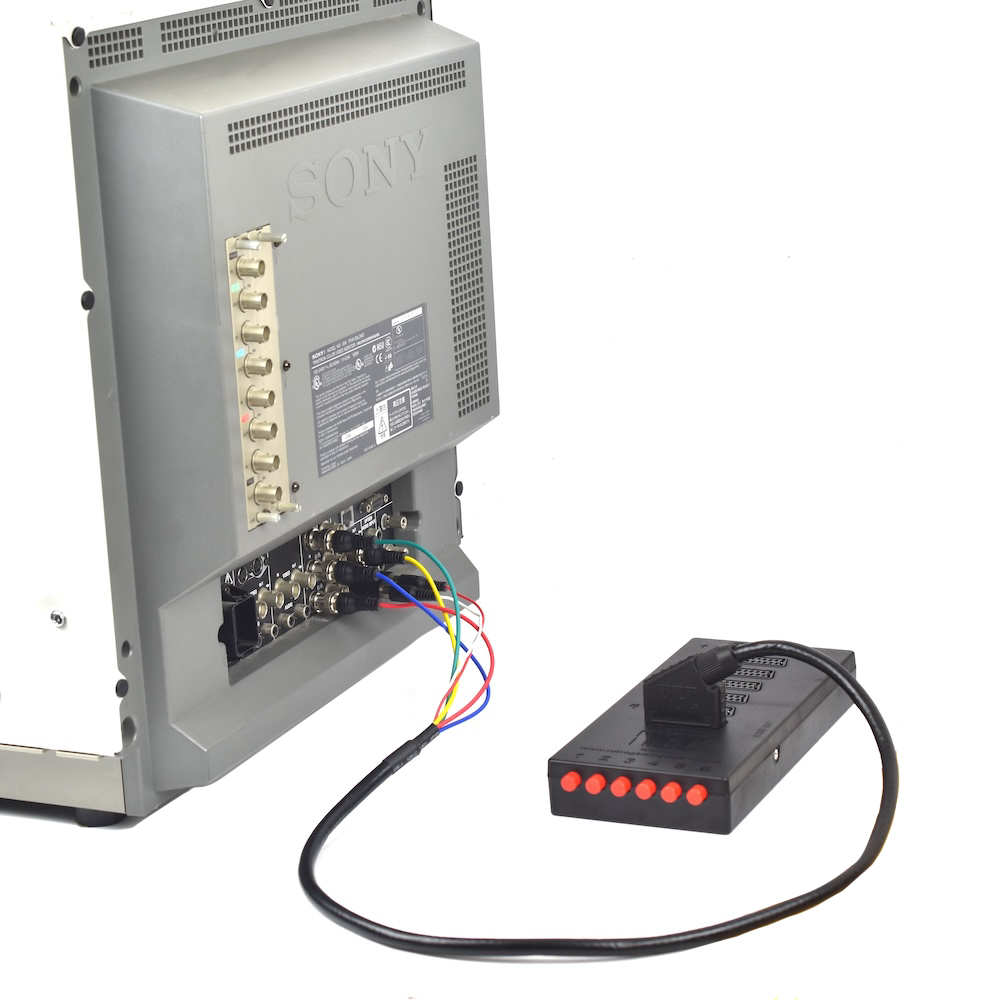

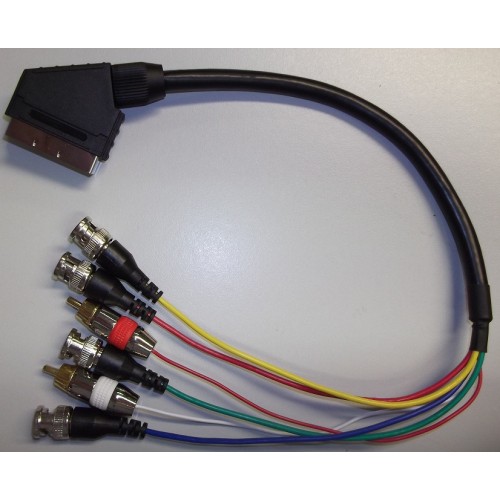

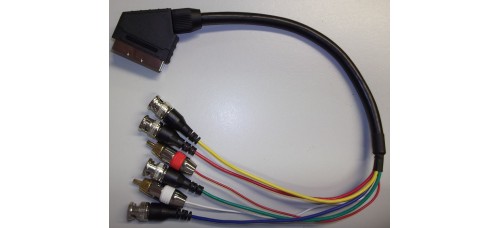

To enable the of connection of multiple classic games consoles and computers to Sony PVM monitors which have BNC inputs for RGB and Sync via a SCART switch. This BNC converter cable is also suitable for other professional monitors which accept R-G-B plus separate sync signal via BNC inputs. The video signals, Red, Green, Blue and Sync are outputted via BNC connectors and the left and right audio is outputted via two separate phono plugs. Each wire is individually screened using copper braided shielding to minimise interference and the connectors are gold plated to maximize the operating lifespan of the converter. This adapter allows the connection of games consoles and micro computers which use European RGB SCART cables, such as the Sega Mega Drive, SNK Neo Geo and Super Nintendo / Super Famicom consoles.

This cable can also be used for MAME projects, as this will allow you to connect a PC to an RGB tube / CRT TV mounted inside an arcade cabinet via an Extron VGA to RGB down-scaler. If you require the cable for this application then please select the signal direct as an OUTPUT.

SCART CONFIGURATION AVAILABLE AS EITHER AN INPUT OR OUTPUT - PLEASE SELECT TYPE BEFORE CHECKING OUT

SCART CONFIGURATION - INPUT (For use with SCART switching boxes, to be plugged into the output of the SCART switch) Pin 1 - Audio Right (Input) Pin 3 - Audio Left (Input) Pin 19 - Composite video (Input)

SCART CONFIGURATION - OUTPUT (For use with up-scalers which output R-G-B & SYNC via BNC connectors, or VGA to RGB down scalers such as the Extron range) Pin 2 - Audio Right (Output) Pin 6 - Audio Left (Output) Pin 20 - Composite video (Output)

If your monitor has a mono sound input only you will need a stereo to mono adapter. PVM models which require this adapter include the PVM20M2MDE & PVM14M2MDE.

All cables are tested before dispatch. Made in Great Britain. This is not an official Sony Product.

Compatibility
Monitor	Majority of Sony PVM monitors which use analogue RGB BNC inputs, including the PVM2950Q, PVM2950QM, PVM20M2MDE & PVM14M2MDE.
Region	Pal, NTSC, SECAM
Video and audio format
Sync type	This passive adapter will transmit any sync signal supplied by a EuroSCART cable, including "sync over composite video", "composite sync (CSYNC)" and "sync over luma".
Audio type	Stereo
Cable construction
Shielded?	YES - Individually shielded mini coaxial cables
Connector A	Male EuroSCART RGB SCART switching box (Adapter type needed = INPUT version). Up-scaling units which outputs R-G-B and SYNC via BNC connectors (Adapter type needed = OUTPUT version)

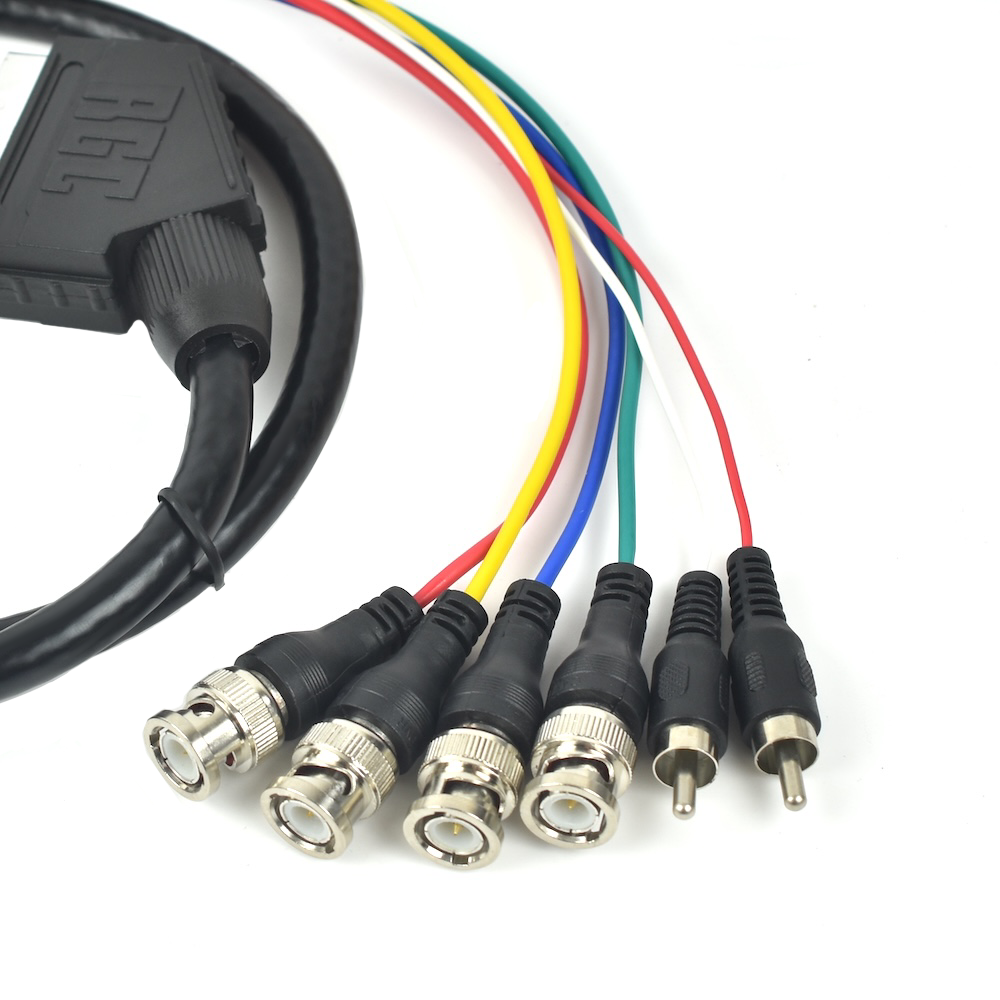

Connector B	4 x Male BNC connectors. Red, Green, Blue & yellow (sync). 2 x male RCA/Phone connectors for left and right audio.
Lead Length	0.5m
Weight	160g
