RGC SCART Switch

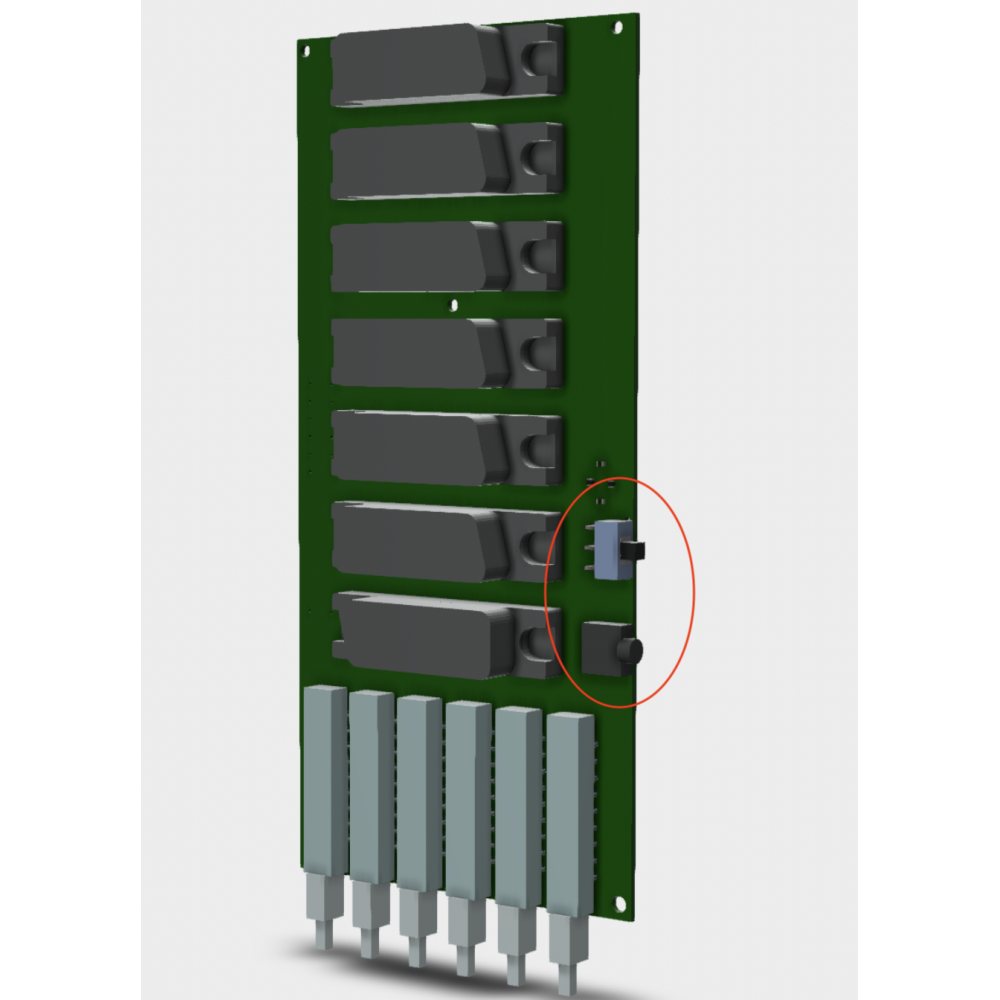

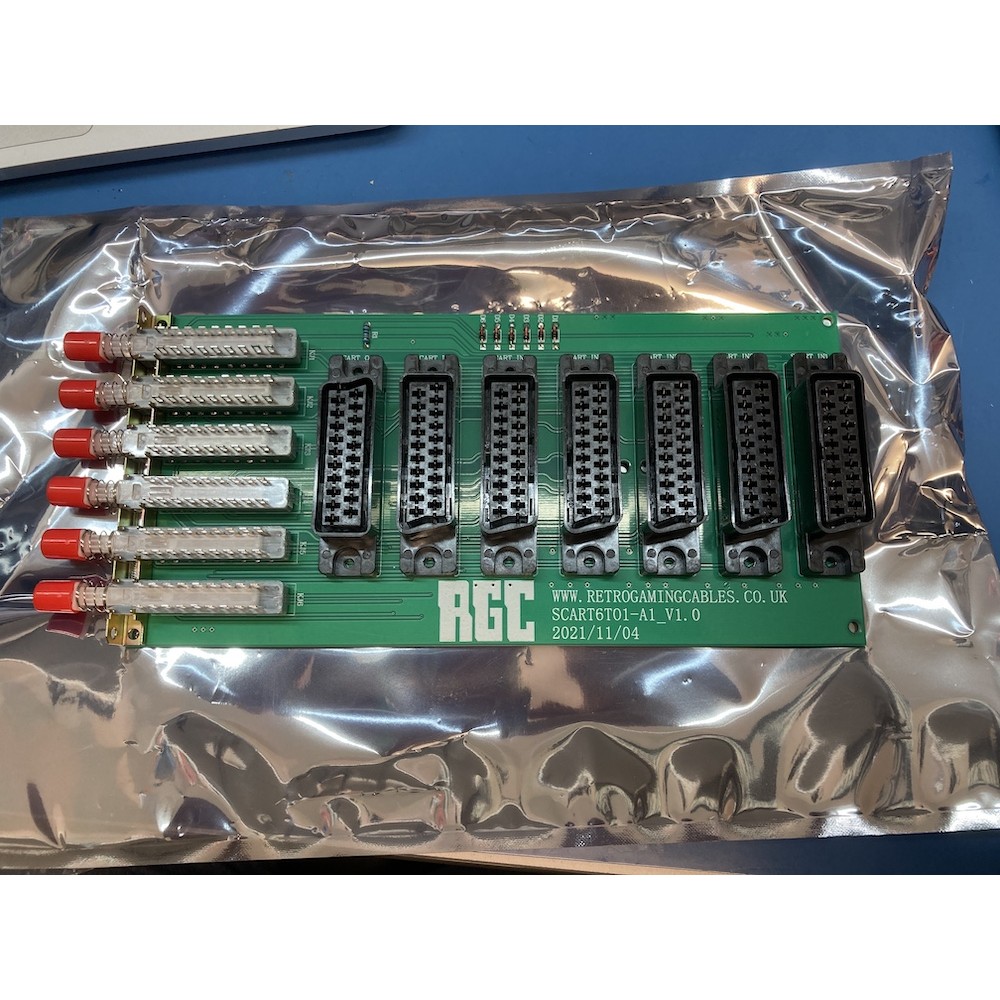

To design a family of simple manual six in one out SCART switching boxes, which mitigates interference often introduced with other SCART switchers. Diode protection on the DC voltages to prevent voltage leakage into other consoles connected to the SCART switch. Sleek box design to encase the PCB. And also a dedicated 2nd design for the RetroTink 5X-Pro which negates the need for a male to male SCART lead, as this plugs directly into the SCART port of the RetroTink 5X-Pro.

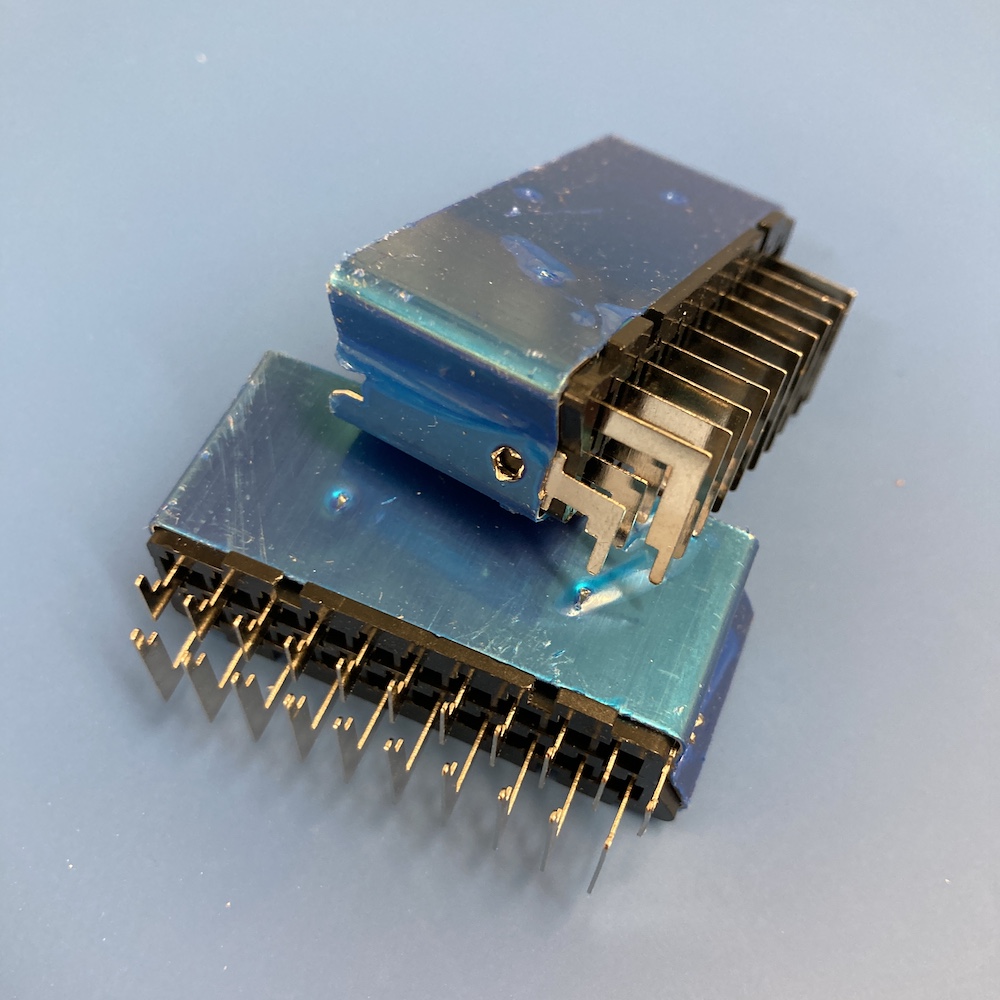

Due to the nature of the custom male PCB mount SCART plug we had to design a back stop to prevent pins being pushed back. This will require additional tooling.

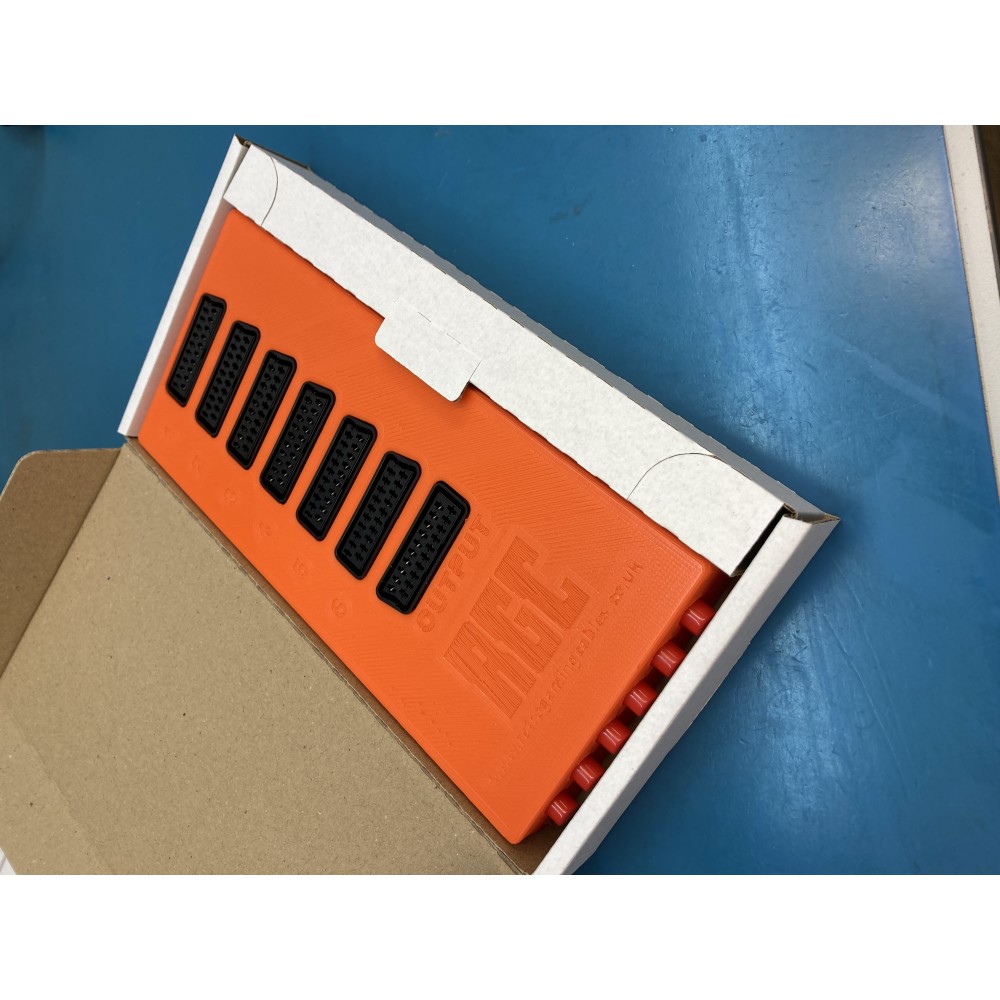

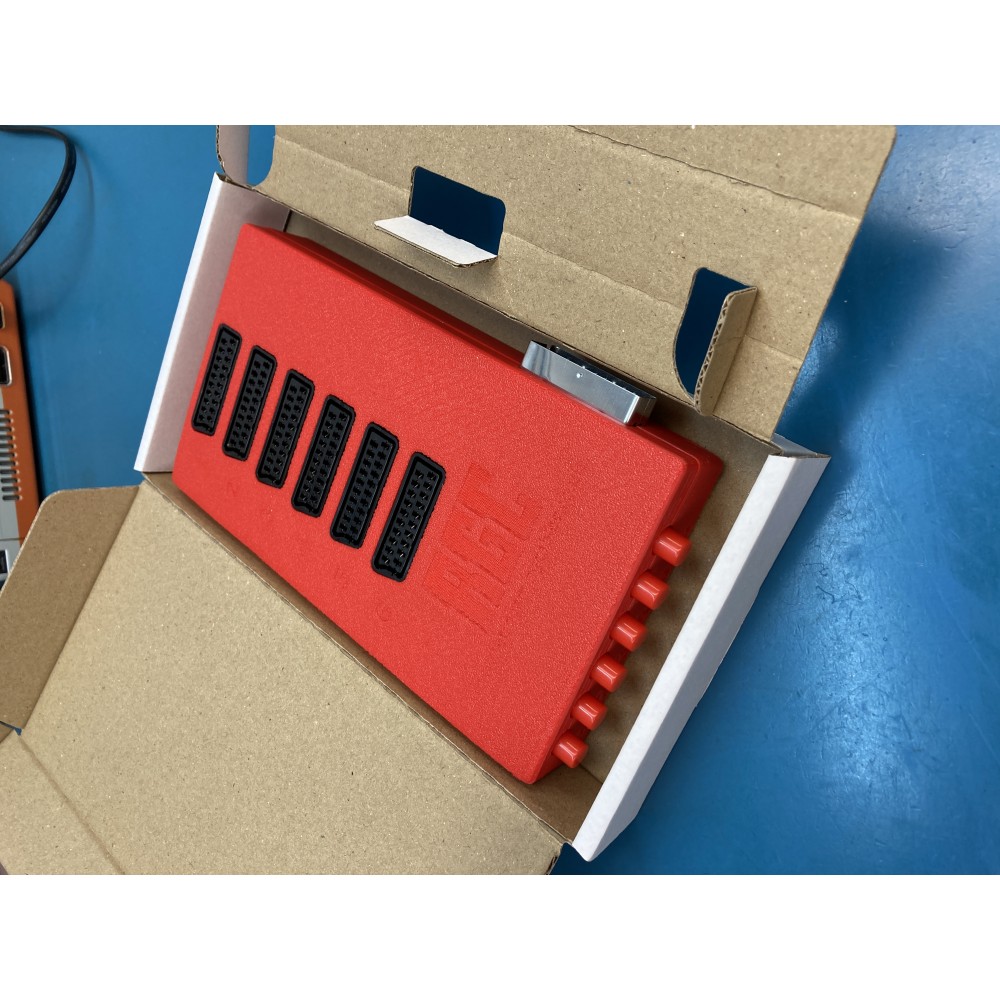

Tooling underway and shipping boxes designed for both the regular 6 to 1 SCART switch and the 6 to 1 SCART switch for the RetroTINK5X.
Update on case design. Nearly ready for tooling.

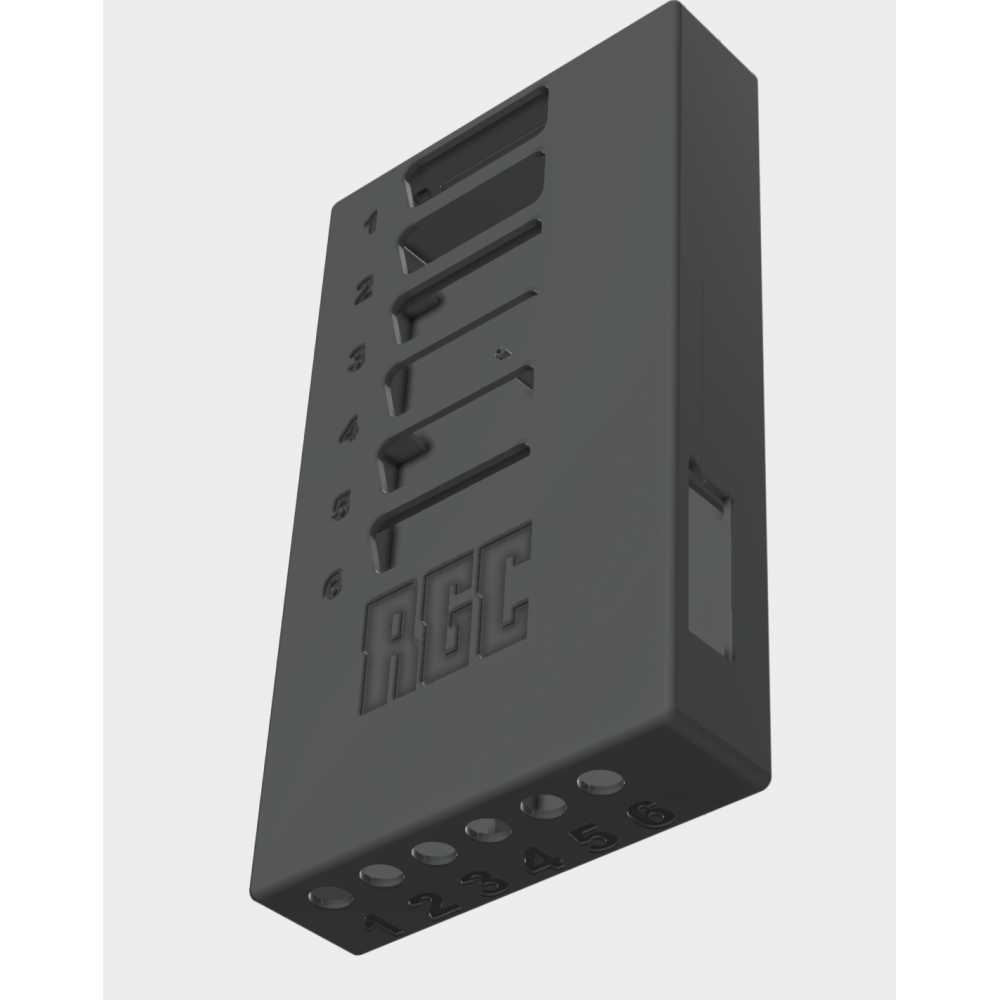

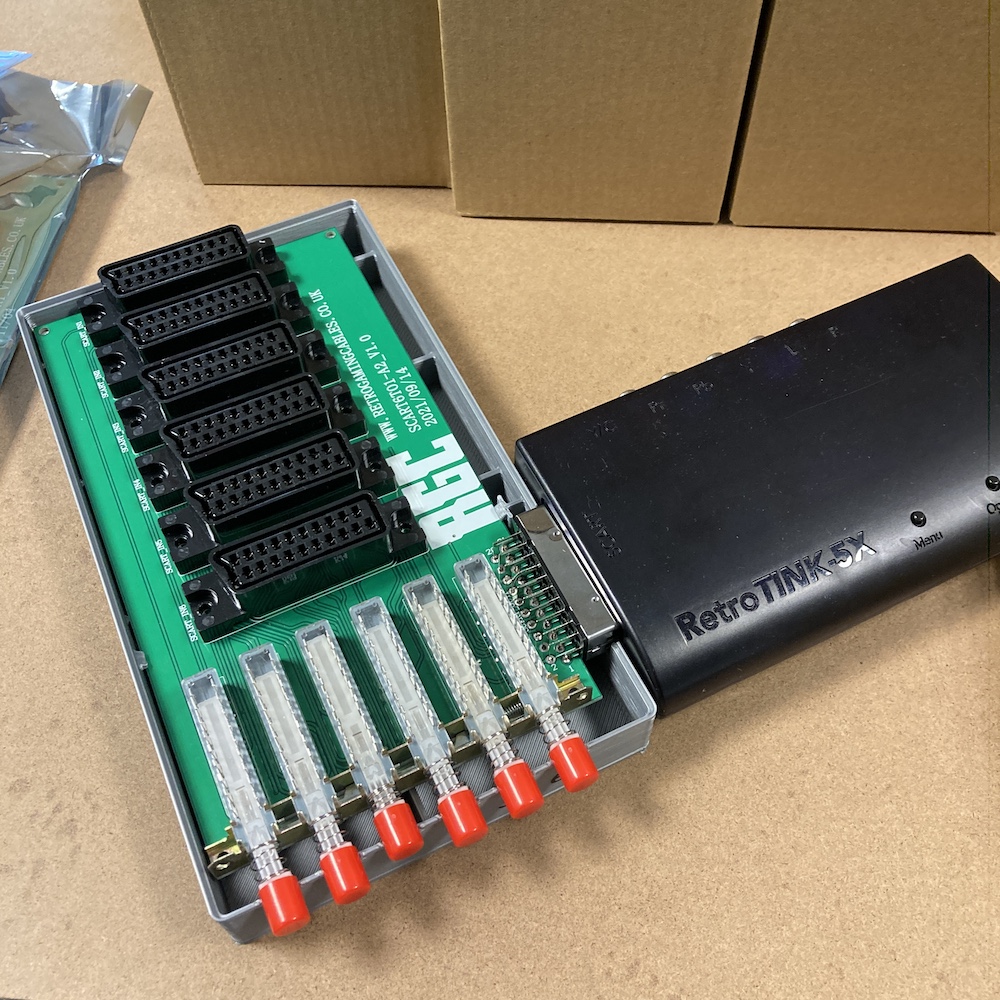

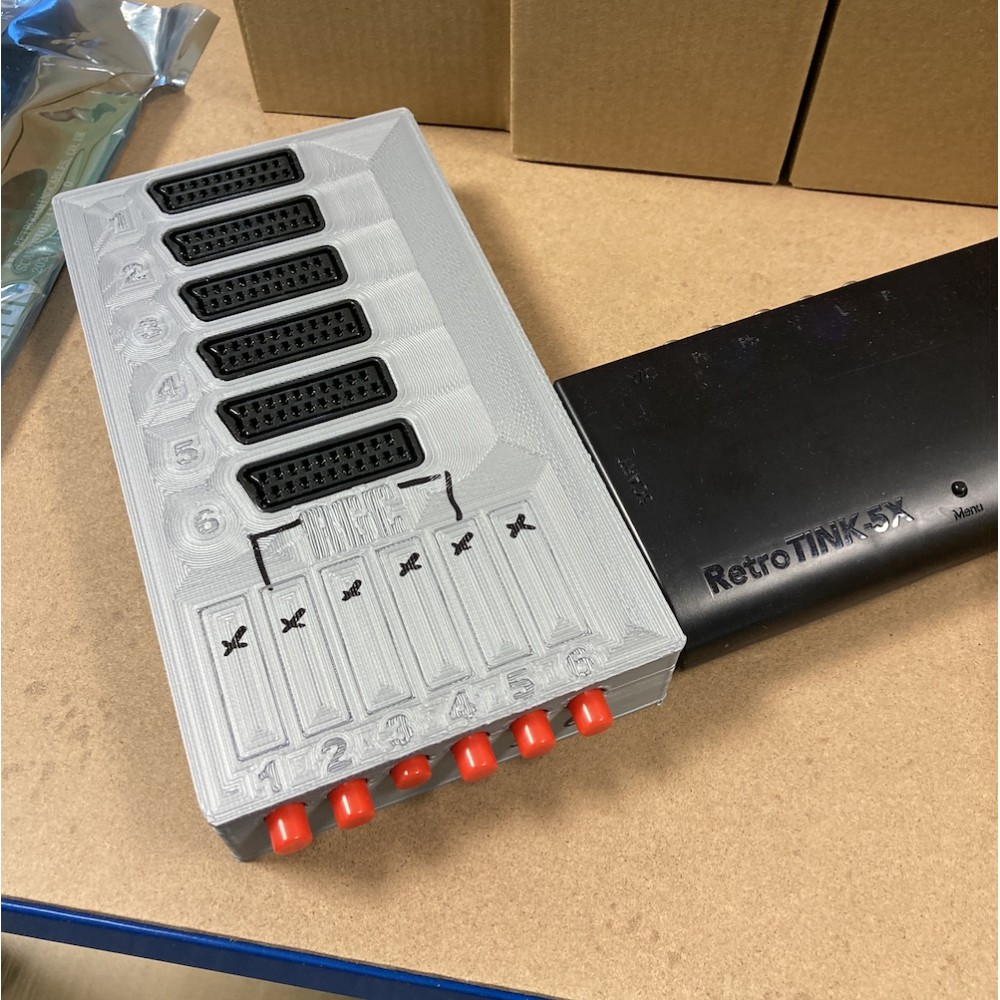

Case design for the RetroTink 5X version.

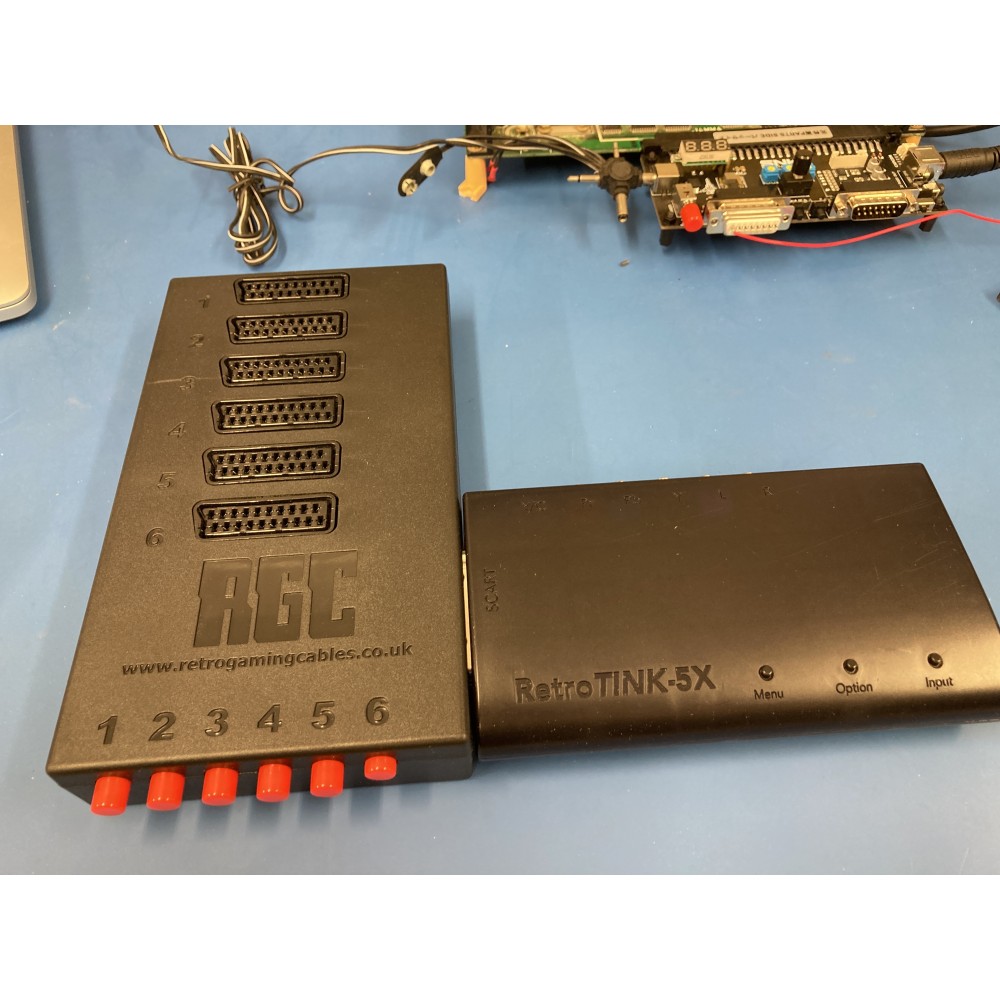

2nd design specifically for use with the RetroTink 5X.

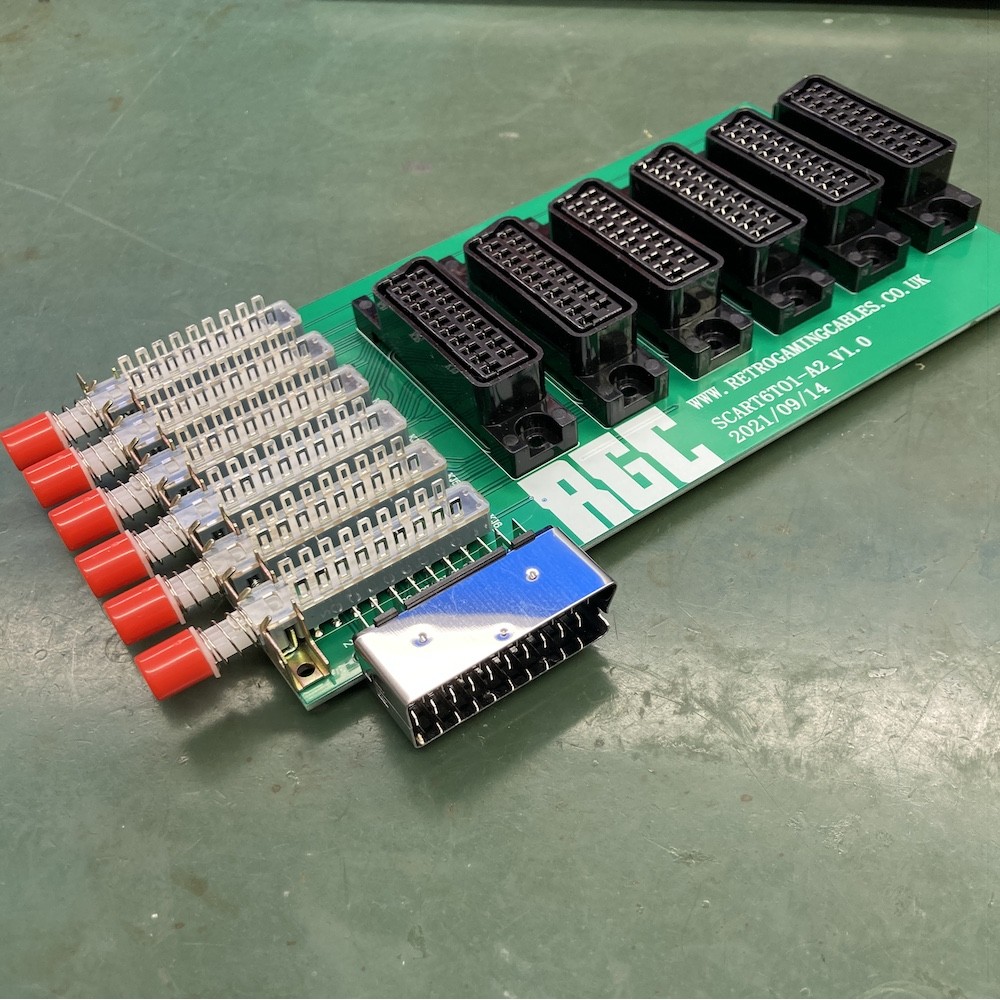

This required a custom made male PCB mount SCART plug, with the correct orientation to match the SCART input of the RetroTink 5X
Short video demonstration of a prototype.
